SKF TMMR Reversible Jaw 2 Leg Puller 50kN

68-162 mm Int 114-163 mm Ext 143 mm Deep
Stock Code:
TMMR160F_SKF
$270.39 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
2 On Order
Make an Enquiry
Add to Favourites

Description

TMMR 160F

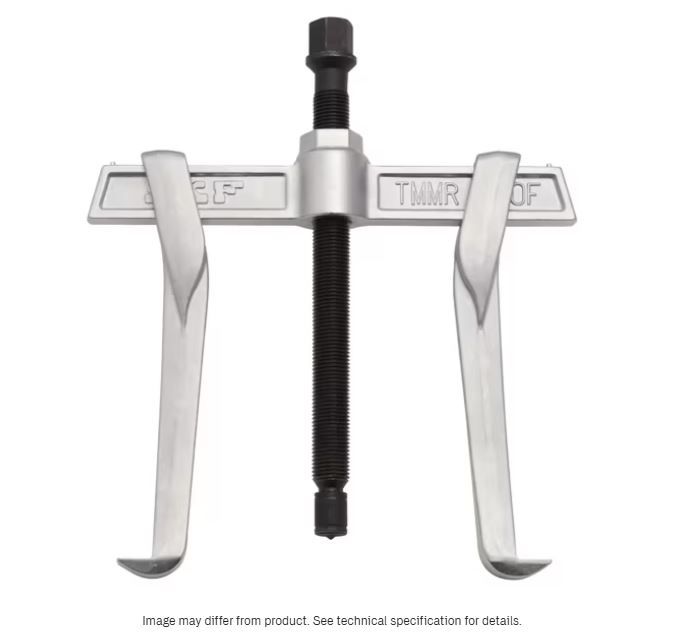

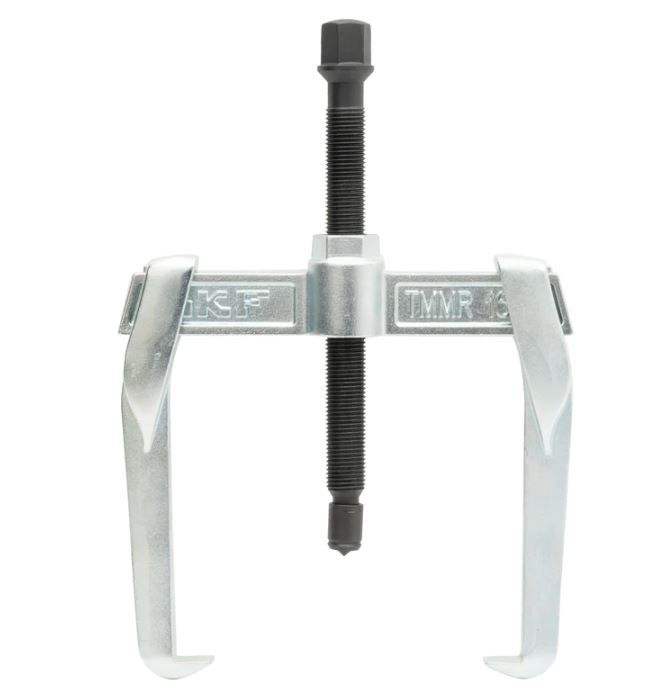

SKF Reversible Jaw Puller TMMR 160F
68MM - 164MM

The multi-purpose SKF Reversible Jaw Puller TMMR 160F is designed for internal and external pulling jobs of bearings and other components such as gears and pulleys. The two arms of the puller can be mounted with the claws facing inside or facing outside, making it a versatile and essential tool for mechanical workshops.

  • Easy adjustment of the width of grip with self-locking arms
  • Essential and versatile tools for every workshop for internal and external pulling appliactions
  • Enhanced corrosion resistance and easy cleaning with zinc passivated arms and beam
  • No permanent deformation of puller arms when used up to maximum withdrawl force
  • Optional accessories further increase the versatility of the puller

Dimensions

Width of grip external68.0  –  164.0 mm
Effective arm length143 mm
Claw height9 mm
Claw length18 mm
Total Arm length202 mm
Claw width22 mm

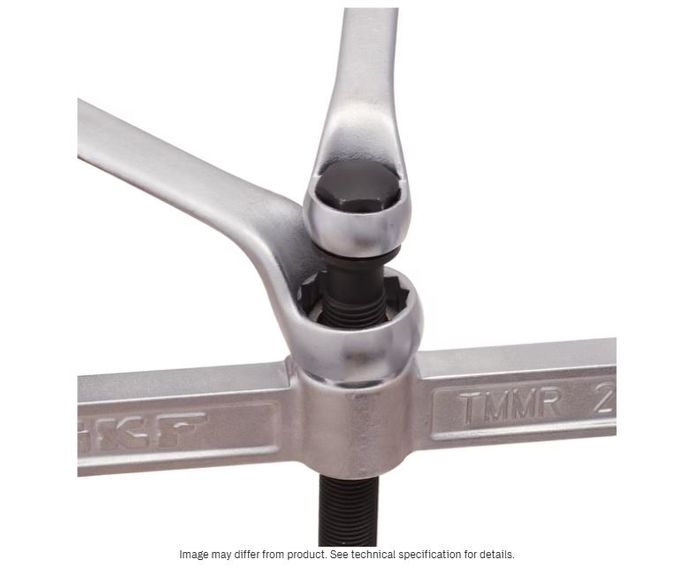

Spindle head, hexagon size22
Puller or Adapter hexagon size30 mm
Total spindle length252 mm

Properties

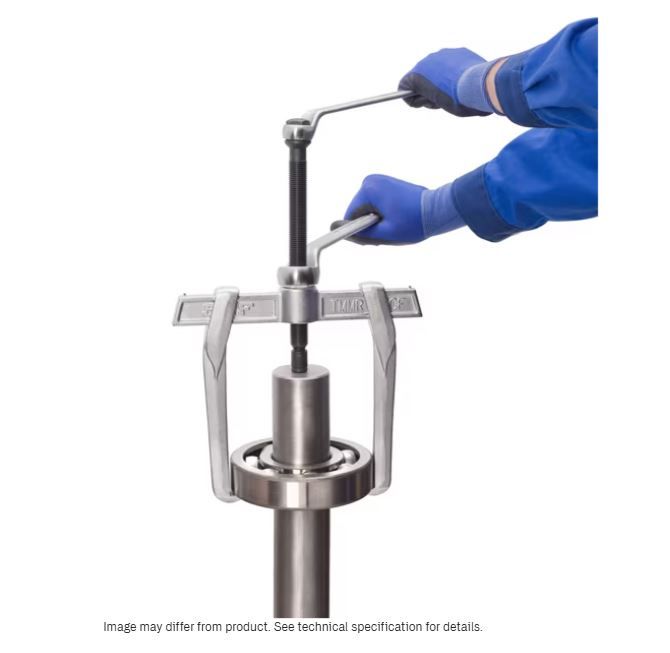

Recommended applicationsFor the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)No
Suitable for workpiece dismounting from a HousingYes, with spindle support (not included)
Suitable for bearing type(s)All
Dismounting force generationSpindle
Special features
Reversible arms
Selflocking arms
Number of arms2
Pulling force (max)50 kN
Width of grip internal114.0  –  163.0 mm
Spindle torque (max)115 N·m
Spindle nose pieceNo, optional
ColourMetallic
MaterialAlloy engineering steels, hardened and tempered
CoatingZinc coated
Content
1x Puller TMMR 160F
1x Tube of spindle grease LGEV2/0.035
1x Printed instructions for use
Product weight2.3 kg

Logistics

Product net weight2.28 kg
eClass code23-05-19-01
UNSPSC code27111712

Click here for product information

Product Guide Attached
