SKF - Deep Groove Ball Bearing Puller Kit

(Suits 71 different bearing sizes)
Stock Code:
TMMD100_SKF
$1,555.64 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TMMD 100

SKF Deep groove ball bearing puller kit

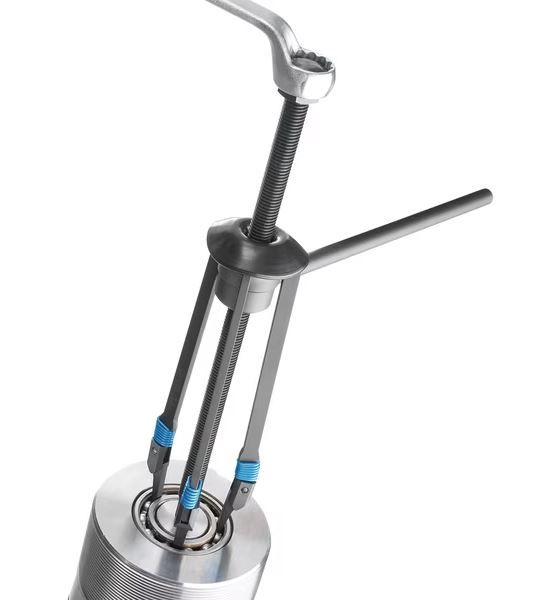

The TMMD 100 bearing puller is an easy to install tool, suitable for use in both blind housings and shaft applications. Supplied in a sturdy carrying case, it is fitted for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in).

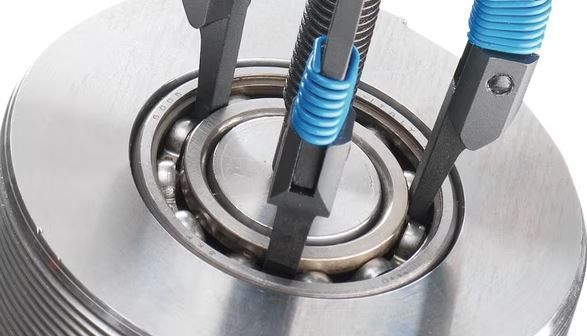

  • The claws are easy to insert and precisely fit in the bearing’s raceway, allowing high dismounting forces

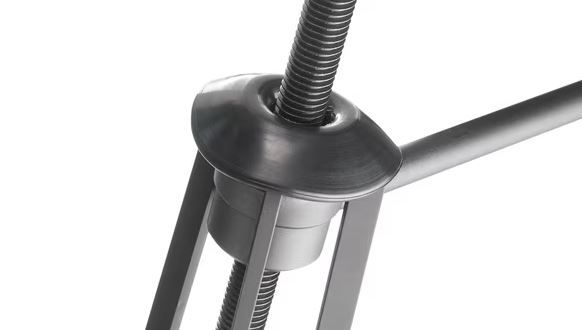

  • Spanner stop function on spindle for easy and safe handling
  • Color coded and laser marked arms for easy selection
  • The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed

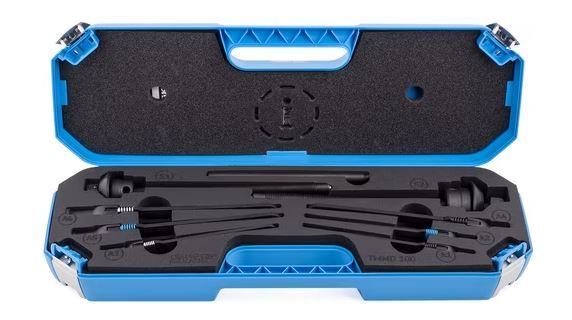

  • Supplied in handy tool case

Dimensions

Total spindle length
Spindle S1: 275 mm
Spindle S2: 288 mm
Case dimensions (l x h x w)530 x 85 x 180 mm

Properties

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)No
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)No
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)Yes
Suitable for workpiece dismounting from a HousingNo
Suitable for bearing type(s)SKF Deep Groove Ball Bearings (DGBB's)
Bearing bore diameter range10.0  –  100.0 mm
Number of arms3
Number of arm extension pieces-
Max bearing depth
With arm A1: 135 mm
With arm A2: 135 mm
With arm A3: 137 mm
With arm A4: 162 mm
With arm A5: 167 mm
With arm A6: 170 mm
Total Arm length
Arm A1: 188 mm
Arm A2: 189 mm
Arm A3: 193 mm
Arm A4: 226 mm
Arm A5: 231 mm
Arm A6: 236 mm
Effective spindle length
Spindle S1: 214 mm
Spindle S2: 214 mm
Spindle nose pieceNo
Spindle head, hexagon size
Spindle S1: 19 mm
Spindle S2: 24 mm
Total number of arms in kit6 sets of 3
Total number of spindles in kit2
MaterialMedium carbon steels and alloy engineering steels, hardened and tempered
CoatingBlack phosphated
ColourBlack metallic
Content
6x sets of 3 arms, size A1 to A6
2x spindles, size S1 and S2
1x Spindle holder
1x printed Instruction for Use (language free)
1x Carrying case (size X)
Total product weight3.6 kg

Logistics

Product net weight3.6 kg
eClass code23-05-19-01
UNSPSC code27111712

Click here for product information

Product Guide Attached.
