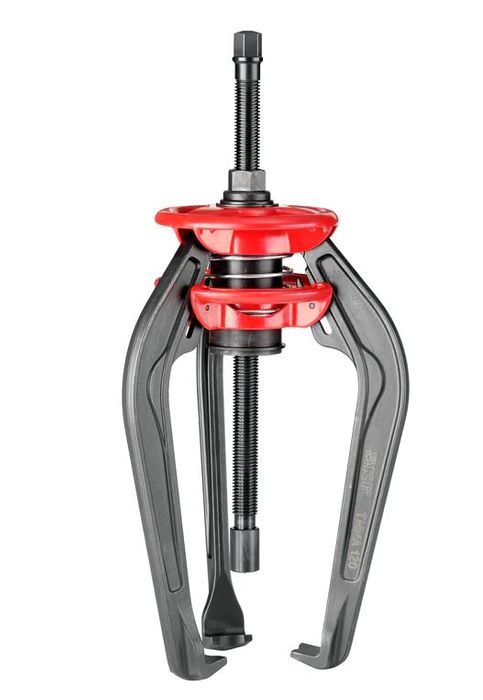

SKF EasyPull Mechanical Puller 120 kN

250 mm x 250 mm

Stock Code:

TMMA120_SKF

$1,163.39 incl GST

Stock Locations

Ballarat:

1 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TMMA 120

SKF EasyPull mechanical puller 250mm

The SKF EasyPull TMMA 120 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 120 is mechanically operated and capable of withdrawl forces up to 120 kN for components with a maximum outer diameter of 250 mm (9.8 in).

Unique red rings spring-operated opening mechanism allow the TMMA 120 to be placed behind the component with just one movement
Self-centring capability and nosepiece help to avoid damage to shaft
Self-locking arms help to prevent puller slipping under load
Sturdy design allows safe dismounting of components in the tightest applications
Hydraulic force generators TMHS 100 available as an accessory

Dimensions

Width of grip external	75.0 – 250.0 mm
Effective arm length	250 mm
Claw height	13.8 mm
Claw length	24 mm
Total Arm length	416 mm
Claw width	40 mm
Puller adaptor thread	UN 1.5 x 16 tpi
Spindle head, hexagon size	24
Puller or Adapter hexagon size	32 mm
Total spindle length	505 mm

Properties

Recommended applications	For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)	Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)	Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)	Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)	No
Suitable for workpiece dismounting from a Housing	No
Suitable for bearing type(s)	All
Dismounting force generation	Spindle
Special features	Spring operated opening mechanism
Number of arms	3
Pulling force (max)	120 kN
Spindle torque (max)	265 N·m
Spindle nose piece	yes, âÂÂ28 mm
Colour	Black, with red handle
Material	Alloy engineering steels, hardened and tempered
Coating	Black phosphated, red powdercoated
Content	1x Puller TMMA 120 with mechanical spindle 1x Tube of spindle grease LGEV2/0.035 1x Printed instructions for use
Product weight	10.9 kg
