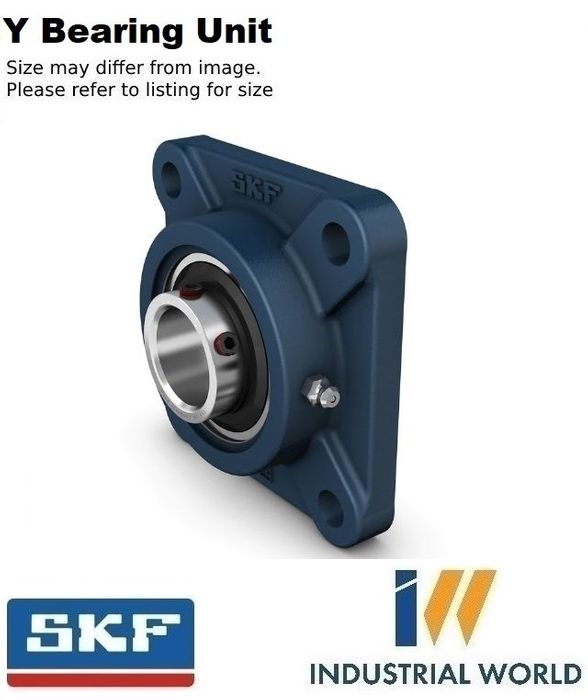

SKF Y Bearing Unit 75MM shaft

F215 & UC215

Stock Code:

UCF215_SKF

$181.50 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

150 On Order

Make an Enquiry

Add to Favourites

Description

UCF 215

Square flanged ball bearing unit with set screw locking, cast iron housing, JIS

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Dimensions

Shaft diameter	75 mm
Housing overall width	56.5 mm
Width, total	78.3 mm
Centre distance between bolt holes	159 mm
Bearing width, total	77.8 mm

Properties

Housing type	Flanged
Flanged housing type	Square
Number of bolt holes for fasteners	4
Fastening bolt hole type	Plain
Retaining feature, inner ring	Set screws
Bore type	Cylindrical
Rubber seating ring	Without
Material, housing	Cast iron
Material, bearing	Bearing steel
Coating	Without
Sealing, bearing	Seal and flinger on both sides
Sealing type	Contact, standard
Sealing, unit	Optional end cover
Lubricant	Grease
Relubrication hole	With
Grease fitting	With
