Hex Set Screw - M8x40 Galvanised (Box=200)

AS1110.1 / CLASS 8.8 - M8-1.25 x Fully Threaded
Stock Code:
BS88GCM080040
$0.57 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

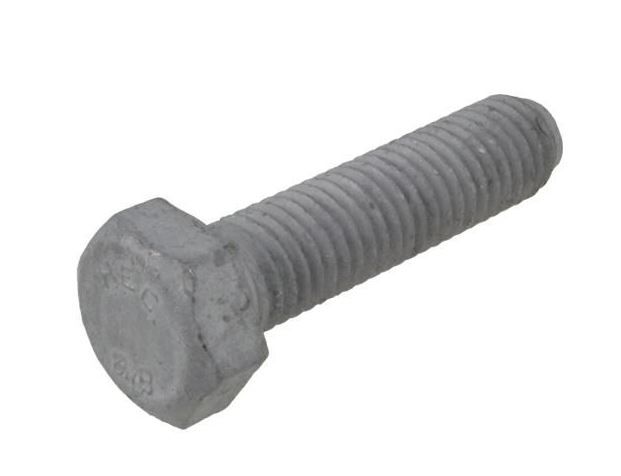

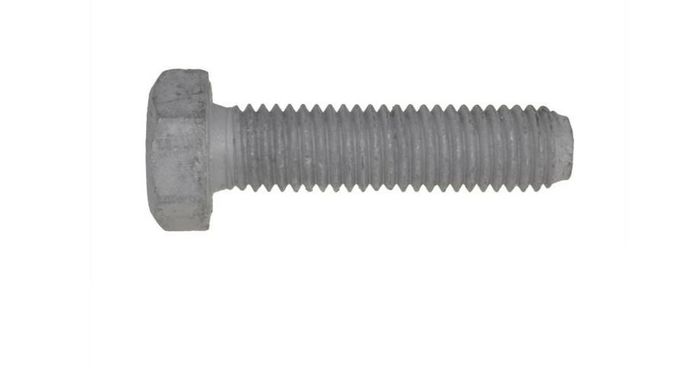

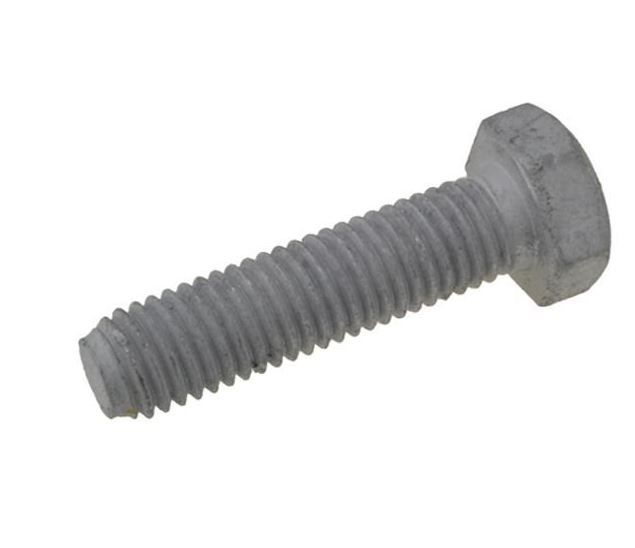

Hex Set Screw - M8x40 Hot Dip Galvanised (Box=200)

Hex Set Screws are fully threaded with a hexagon head, if you require an unthreaded section (called shank) then you need to search for a hex bolt. Hex set screws are often threaded into something such as a piece of machinery, rather than being used with a nut.

Screw:  Similar to a bolt but has a much longer thread almost to the head. It can be tightened with a nut or a threaded through hole or a blind hole. In some instances, a screw could cut or form its own thread (eg. timber screws, thread forming screws).

Finish

HOT DIP GALVANISED


HDG products are used where a high level of corrosion resistance is required. HDG products are recommended for long term outdoor applications.


Product
HEX SET SCREW

Size
M8

Specification
AS1110.2 / CLASS 8.8

Length / Dimension
40

Thread
M8-1.25 x Fully Threaded Thread length on older stock may vary


Click here for bolt technical specifications

Click here for bolt & set screw information

Click here for spanner selection for hex bolts & nuts metric

Click here for product finish comparisons

Click here for hobson breaking strength guide

Click here for hobson high tensile product guide

Click here for high tensile & stainless steel head markings

Click here for hex set screw galvenized information


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M8-1.25
  • Left or Right Hand:
    Right Hand
  • Material:
    Galvanised 8.8 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    40 mm
