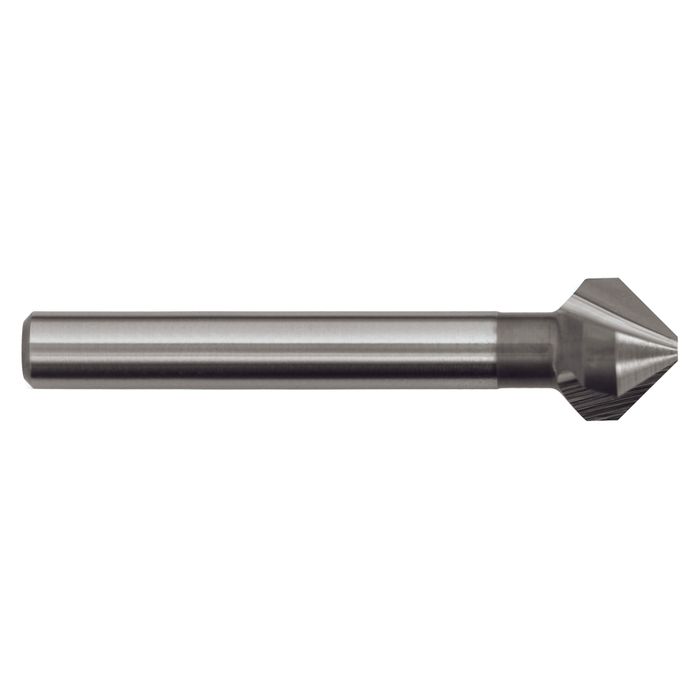

Sutton - 30mm 90 Deg Countersink Bit Three Flute

DIN - Cobalt Steel
Stock Code:
SUT-C1073000
$100.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

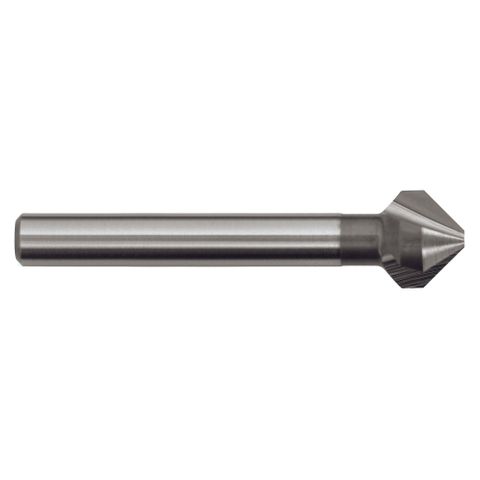

Sutton - 30mm 90 Deg Countersink Bit Three Flute

  • Three Flute Countersink 90°, DIN 335
  • Countersinking / Counterboring screw holes
  • For Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516
  • For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047
  • Chamfering of tapping holes

Features

  • For use in machine applications
  • Type N - For non-ferrous, Type UNI - For difficult to machine materials

Specifications

  • Designation: N
  • Material: High Speed Steel-Cobalt
  • Finish: Bright
  • Shank Tolerance: h9
  • Standard: DIN 335
  • Point Type: 90°
  • Countersink Diameter (mm) 30
  • Overall Length (mm) 71
  • Shank (mm) 12

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 – 110 HB
  • Optimal for Cast Iron – Chilled – 400 HB
