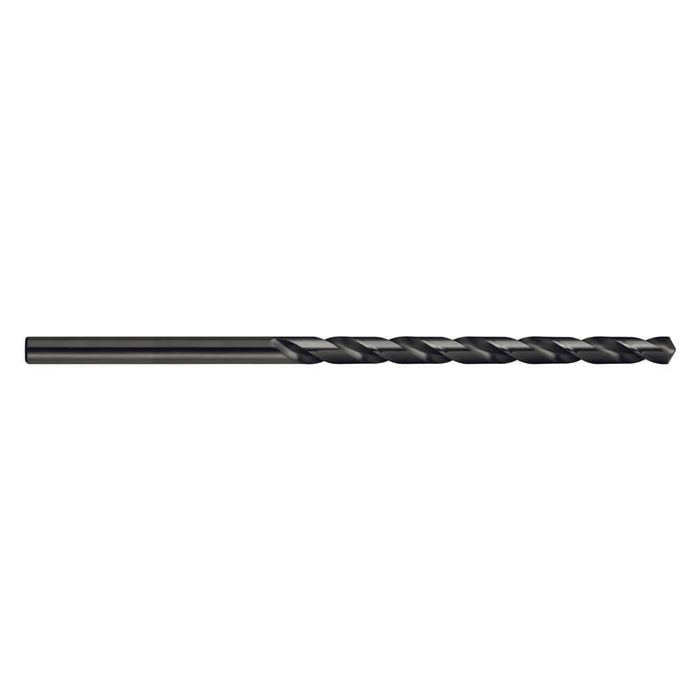

Sutton - Jobber Drill - Blue Bullet

13/64 ANSI B94-11 - HSS Pack of 10
Stock Code:
SUT-D1130516
$153.12 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton - Jobber Drill - Blue Bullet

  • General purpose drill
  • Ideal for long reach type applications

Features

  • For deep hole applications, pecking is recommended
  • Recommended for controlled machine drilling only

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Maximum Cut Depth: 8XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8

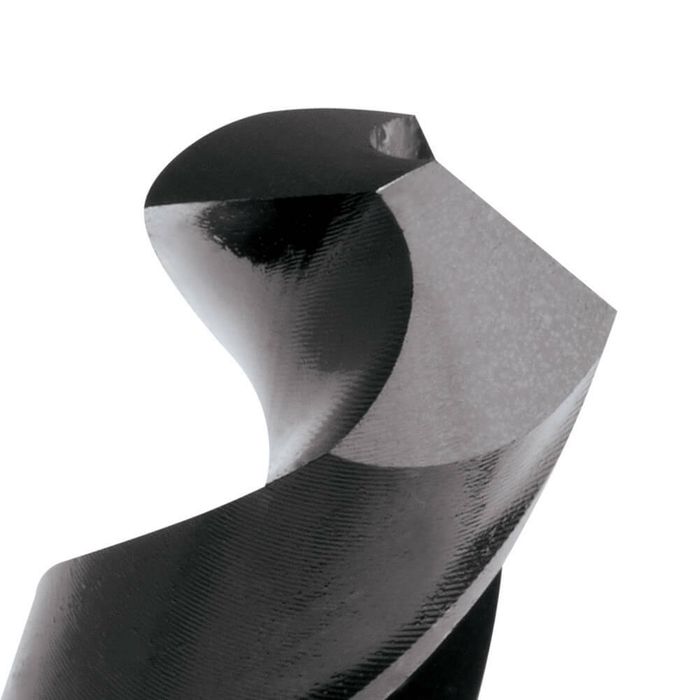

  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: ANSI B94-11
  • Overall Length (mm) 152
  • Flute Length (mm) 92
  • Type Long Drill Bit

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
