SKF - Highly accurate V-belt Pulley Alignment Tool

aligns V-belt pulleys in the grooves 50mm - 6000mm
Stock Code:
TKBA40_SKF
$3,500.27 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKBA40

SKF - Highly accurate V-belt Pulley Alignment Tool

Belt Alignment Tool

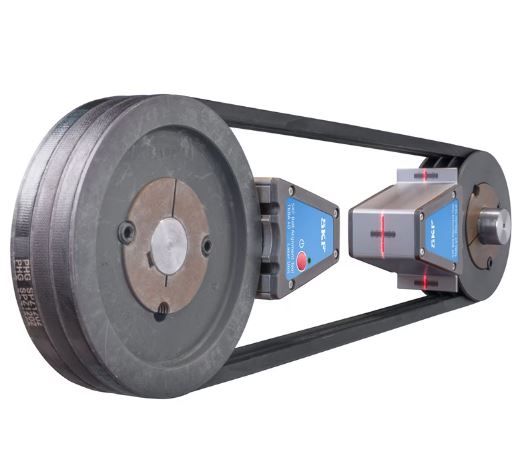

The Belt Alignment Tool TKBA 40 aligns V-belt pulleys in the grooves. V–guides and powerful magnets allow the TKBA 40 to be fitted in the grooves of the pulley. With only two components, a laser–emitting unit and a receiver unit, the belt alignment tool is easy to use and allows fast and accurate belt alignments. The three-dimensional target area on the receiver unit help the easy detection of misalignment as well as its nature; whether it is horizontal, vertical, parallel or a combination of all three.

  • Powerful magnets allow fast and easy attachment
  • Three-dimensional target area simplifies detection and correction of misalignments
  • Facilitates simultaneous adjustment of tension and alignment
  • V-guides included for a wide range of V-belt pulleys
  • Aligns grooves of a V-belt pulley rather than its face, allowing optimum alignment of pulleys of unequal width or with dissimilar faces
  • Special side adaptor for alignments of multi-ribbed and timing belt pulleys as well as sprockets is available as accessory.

Dimensions

Transmitter dimensions (l x h x w)70 x 74 x 61 mm
Target dimensions (l x h x w)70 x 74 x 61 mm
Case dimensions (l x h x w)260 x 85 x 180 mm

Properties

Recommended applicationsMost machines using V belts
MountingMagnetic, groove mounted (side mounting possible with optional adapter TMEB A2)
Laser typeVisible red line laser
Laser wavelength632 nm
Laser power max1 mW
Laser line length (at 2 m)3 m
Measurement accuracy angular (at 2 m)0.2 °
Measurement accuracy offset0.5 mm
Transmitter weight0.32 kg
Target type3D target
Target weight0.27 kg
Housing materialExtruded anodized aluminium;Polyamide endcaps
ColourGrey;Black;Blue
Battery2x AAA Alkaline type IEC LR03 (included)
Battery life20 h
CertificationsCalibration certificate with two year validity
Degree of protection (IP)IP 40
Operating temperature range0  –  40 °C
Recommended storage temperature-20  –  65 °C
Relative humidity10 to 90%, non-condensing
Content1x TKBA 40 transmitter unit;1x TKBA 40 receiver unit;2x AAA batteries;4x sizes of V-guides, 3x of each size;1x printed instructions for use;1x Carrying case (size A)
Total product weight1.2 kg

Performance

Measurement distance50.0  –  6000.0 mm

Logistics

Product net weight1.22 kg
eClass code23-05-19-01
UNSPSC code41112202

Click here for catalogue information

Product Guide Attached.
