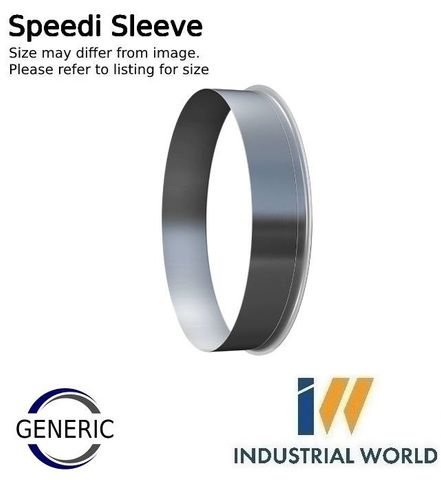

Economy - Speedi-Sleeve - 45 mm

14.0 mm Wide - Standard Version
Stock Code:
99177_ECO
$36.04 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

Description

Economy - Speedi-Sleeve - 45 mm

This thin-walled sleeve [0,28 mm (0.011 in.)],, is simply pushed in position over the worn area, providing a counterface surface that is optimized for radial shaft seals.

There is no shaft disassembly or machining involved and costly downtime is minimized. Since the same sized seal as the original can be used, there is no need to search for other seals, or keep a stock of different sizes. No special equipment is required since the installation tool is supplied with the sleeve. A mallet and a pair of pliers are all that is needed for the installation.

The standard size range covers sleeves for shaft diameters from 11.99 mm to 203.33 mm (0.472 to 8 in.). Depending on production quantities, non-standard sizes can be manufactured. Each sleeve is designed to fit a specific shaft diameter range, usually above and below the nominal shaft diameter. This permits some flexibility to accommodate variations in the actual shaft diameter.

Dimensions

Shaft diameter, minimum44.93 mm
Shaft diameter, maximum45.09 mm
Shaft diameter45.01 mm
Removable flange outside diameter53.01 mm
Seal seat width14 mm

Properties

TypeStandard
DesignSSLV

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    45 mm
  • Material:
    Stainless Steel
  • Width:
    14.0 mm
  • Brand:
    Generic
  • Metric/Imperial:
    Metric
  • Style:
    Standard Version
