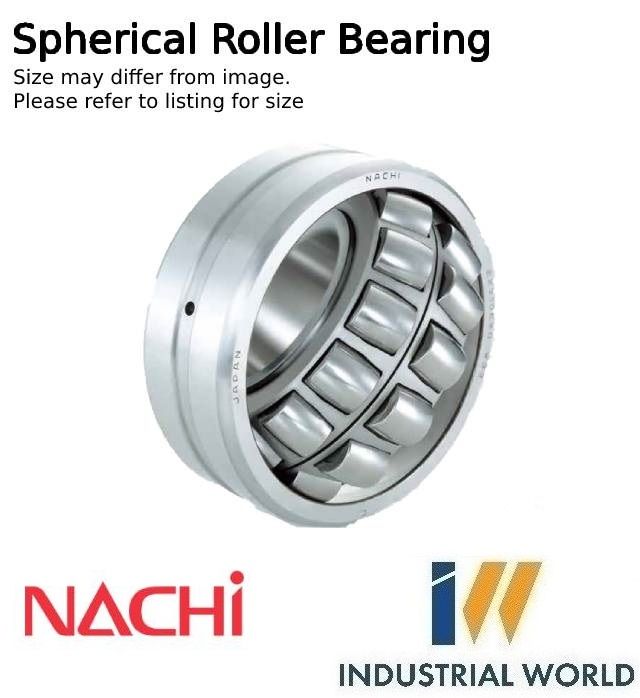

Nachi - Spherical Roller Bearing Cylindrical Bore

35 x 80 x21
Stock Code:
21307E-XQW33-C3_NACHI
$105.09 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NACHI 21307EXQW33C3 Spherical Roller Bearing 21300 Series 35 x 80 x 21mm

Spherical Roller Bearings 21300 Series

  • Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
  • Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
  • Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

  • Abutment And Fillet Dimension Da (min) Mm 44
  • Basic Static Load (N) 76000
  • Bore Diameter x Outer Diameter x Width (mm) 35 x 80 x 21
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Limiting Speed (rpm) Oil Lubrication 8500
  • Basic Dynamic Load Rating (n) 96000
  • Abutment And Fillet Dimension Da (max) Mm71
  • Limiting Speed (rpm) Grease Lubrication 7000
  • R (min) 1.5
  • Type Spherical Roller Bearings
  • System of Measurement Metric

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Material:
    Chrome Steel
  • Width:
    21 mm
  • Brand:
    NACHI
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Cylindrical Bore
  • Size:
    21307
  • Diameter Outside:
    80 mm
