SKF Air-driven Hydraulic Pump Kit

58 000 PSI (REQUIRES AIR)
Stock Code:
THAP400E/K10_SKF
$20,768.58 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

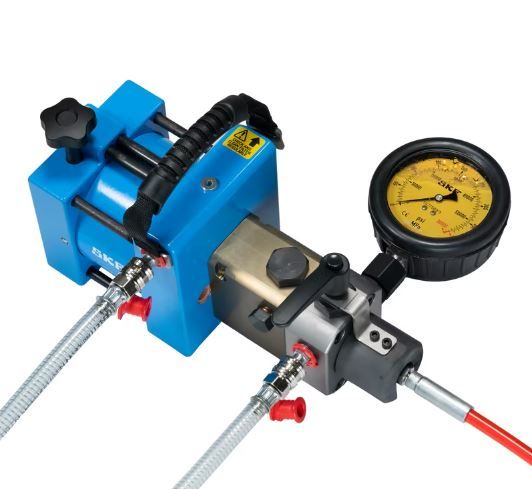

THAP400E-K10 SKF

Air-driven pump set

Air-driven oil injector set, 400 MPa, with high pressure hose, quick connections, pressure gauge, couplings in sturdy wooden carrying case

The THAP 400E/K10 set consist of the THAP 400E air-driven pump with accessories, such as pressure gauge, pressure hose with quick connection couplings and connection nipples. Delivered in a wooden carrying case it is suitable for mounting and dismounting OK-couplings, for dismounting large pressure joints like bearings, flywheels, railway wheels and in many similar applications. The is delivered with a 1 litre can SKF Mounting fluid LHMF 300.

  • Complete set for the required task at hand
  • By using air-driven pumps instead of hand- operated equipment, a considerable amount of time can be saved
  • Easy to connect to the application
  • Easy and quick generation of pressure upto 4000 bar

Dimensions

Dimensions (W x L x H)171 x 405 x 202 mm
Case dimensions (l x h x w)690 x 245 x 310 mm

Properties

Recommended applications
OK Couplings
Large pressure joints
Oil injection for large gears and railway wheels
Air pressure3  –  7 bar
Air pressure limiteryes, at 7 bar
Volume per stroke0.64 ml
Air consumption200 l/min
Pressure ratio1:667
Oil containerNo
Pressure gaugeYes
Oil outlet threadG 3/4
Oil viscosity (maximum)1 500 mm²/s
Housing material
Aluminium
Alloy tool steel
ColourBlue, metallic grey
Operating temperature range0  –  45 °C
Product weight16.9 kg
Content
Air driven pump 400 MPa (58 000 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Pressure gauge, 400 MPa (58 000 psi with protection sleeve (TMJG S100)
Protection device
Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
High pressure hose, 400 MPa (58 000 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
Quick connection coupling, M16x1.5 cone female, 400 MPa (58 000 psi)
Quick connection nipple, M16x1.5 cone female, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Instructions for use
Carrying case
Total product weight21 kg

Performance

Maximum pressure4 000 bar
Maximum pressure400 MPa
