SKF - Endoscope with Flexible tube 1mtr (5.8mm Tip

3.5 Inch Screen - with video capture 2 x zoom
Stock Code:
TKES10F_SKF
$2,015.31 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKES 10F

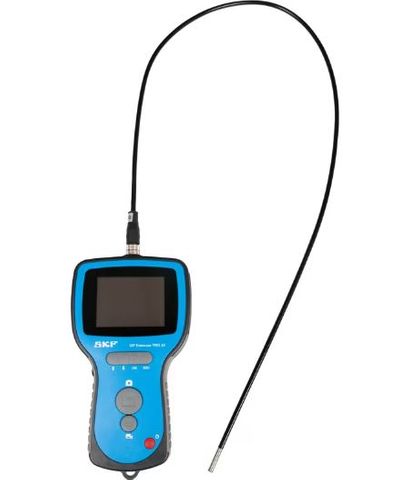

SKF Endoscope TKES 10F with flexible tube
The SKF Endoscope TKES 10F is a first line visual inspection tool to examine the internals of your machinery. It helps to reduce the need to disassemble machinery for inspection, saving time and money. The compact display unit, with 3.5” backlit screen, allows images and video to be saved for reporting and sharing with others. This model features an articulated tip with powerful variable LED lighting that can be controlled from the dispaly unit, allowing inspections in dark and difficult to reach locations.High resolution miniature camera, with up to 2× digital zoom, gives a clear and sharp full screen image
Supplied with a 1 m (3.3 ft) flexible insertion tube
Small tip diameter of 5.8 mm (0.23 in), with a wide field of view, allows easy access to most applications
Supplied with a side view adapter allowing inspection of applications such as pipe walls
Powerful magnets, and a tripod mount on the back of the display unit, allow the display unit to be used “hands free”
Up to 50 000 photos or 120 minutes of video can be stored on the SD memory card supplied
Longer flexible and semi-rigid insertion tubes are available as accessories
Supplied in a sturdy carrying case and ready-to-use with all necessary cables, universal mains charger and cleaning kit

Logistics

Product net weight1.99 kg
eClass code23-05-19-01
UNSPSC code41112202

Properties

Insertion TubeFlexible tube with fixed tip
Adjustability
Fully flexible tube
Fixed tip

Light source20x white LED with adjustable brightness
Tube length1 000 mm
Field of view67 °
Depth of Field15.0  –  60.0 mm
Special features
Comes with integrated magnets and tripod connection for handsfree use
TV out connection
Upto 2x digital zoom
USB out
Mirroring functions
Auto power-off
Sideview adapter included
Image resolution640 x 480 pixels
Video resolution640 x 480 pixels, 30 fps
Display3.5" TFT LCD monitor with 320 x 240 pixels
Measurement methodCMOS
MemorySD Card
Insertion tube and tip diameter5.8 mm
Bending radius (min)50 mm
Tripod connectorYes, (1/4-20 UNC)
BatteryRechargeable Li-Polymer Battery (3.7 V)
Battery life4 h
Power adapter
Input: 100 - 240V 50/60 Hz EU/UK/US/AUS or via 5V USB 2.0 with cable included
Output: 5V DC 2A
ColourBlue, Black
Degree of protection (IP)
Tube: IP 67
Display device: IP 55
Operating temperature range-20.0  –  60.0 °C
Case dimensions (l x h x w)360 x 110 x 260 mm
Content
Display unit (TKES 10-DU)
Flexible insertion tube 1m (TKES TF-1)
SD memory card
Side view adapter 90° (TKES 1-M1)
Video cable for s-video
Power adapter and charger with country plugs (TKES 10-CHARG)
mini USB to USB cable
Cleaning accessories
Carrying case
Instructions for use

Total product weight1.99 kg
