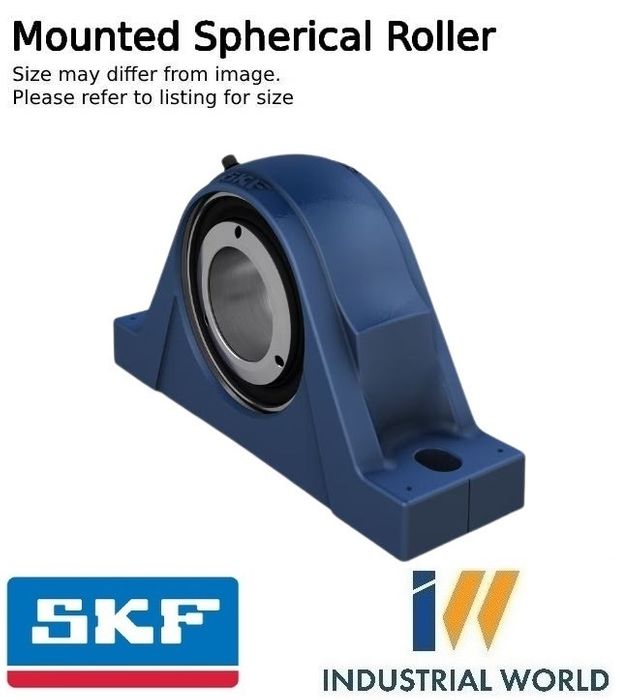

SKF - Spherical Roller Mounted Bearing Unit

Locating 80mm Shaft-Double Lip Seal

Stock Code:

SYNT80F_SKF

$2,255.92 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

SYNT 80 F

Pillow block roller bearing unit, two-bolt, SKF ConCentra locking

Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. This variant has a spherical roller bearing, a two-bolt base and SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing. The units are sealed and lubricated and ready to use. This bearing unit covers a wide range of requirements, in metric dimensions.

Ready to mount
Robust
Factory lubricated and sealed
Quick mounting
Long service life

Dimensions

Shaft diameter	80 mm
Centre height (pillow block)	100 mm
Housing overall width	100 mm
Centre distance between bolt holes	290 mm
Attachment bolt diameter	20 mm
Bearing width, total	74 mm

Properties

Housing type	Pillow block
Number of bolt holes for fasteners	2
Bearing insert	Spherical roller bearing
Retaining feature, inner ring	SKF ConCentra
Bearing position	Locating
Bore type	Cylindrical
Material, housing	Cast iron
Material, bearing	Bearing steel
Coating	Without
Bearing housing seal type	Radial lip seal
Sealing, unit	Without
Lubricant	Grease
Relubrication hole	With
Grease fitting	With
