SKF - Flanged Roller Bearing Unit w Cast Housing

Non-Locating 60mm Shaft-Double Lip Seal

Stock Code:

FYNT60L_SKF

$1,008.79 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

FYNT60L SKF

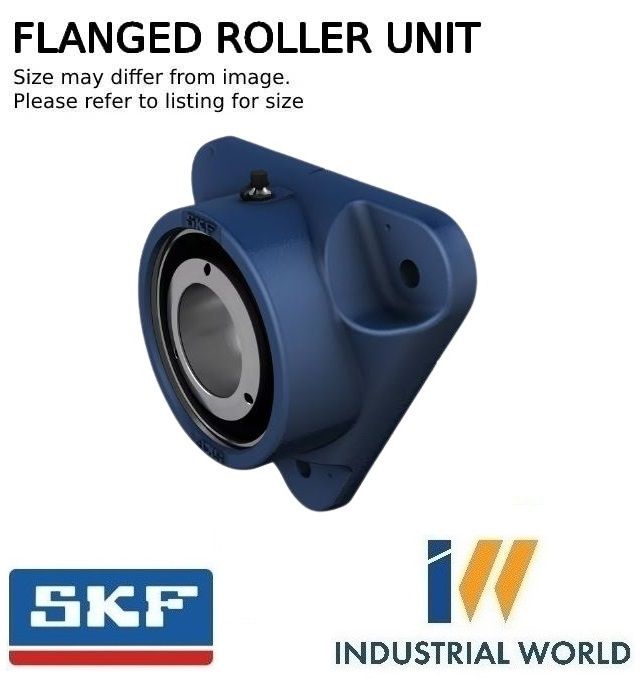

Triangular flanged roller bearing unit with SKF ConCentra locking, metric series
Triangular flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.

Ready to mount
Factory lubricated and sealed
Long service life
Minimal maintenance
Non Locating

Dimensions

Shaft diameter	60 mm
Housing overall width	78 mm
Overall width, total	78.7 mm
Attachment bolt diameter	12 mm
Pitch diameter of bolt holes of round and triangle flange type housing	190 mm
Bearing width, total	70 mm

Properties

Housing type	Flanged
Flanged housing type	Triangular
Number of bolt holes for fasteners	3
Bearing insert	Spherical roller bearing
Retaining feature, inner ring	SKF ConCentra
Bearing position	Non-locating
Bore type	Cylindrical
Material, housing	Cast iron
Material, bearing	Bearing steel
Coating	Without
Bearing housing seal type	Radial lip seal
Sealing, unit	Optional end cover
Lubricant	Grease
Relubrication hole	With
Grease fitting	With
