SKF - Sprocket & Pulley alignment tool 1 x Red las

aligned on the side face 50mm - 3000mm
Stock Code:
TKBA11_SKF
$2,475.90 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKBA11 SKF

Belt Alignment Tool

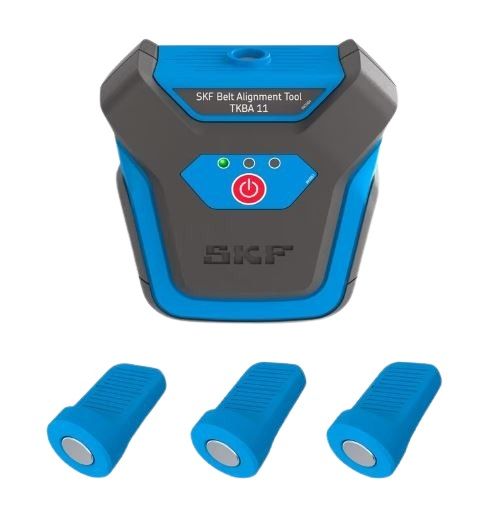

The belt alignment tool TKBA 11 has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKAB 11 alignment tool can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets.

  • Fast, easy attachment with powerful magnets
  • Simplified alignment process - one laser emitter with three passive targets
  • Simultaneous adjustment of tension and alignment

Dimensions

Transmitter dimensions (l x h x w)98 x 97 x 52 mm
Target dimensions (l x h x w)25 x 40 x 25 mm
Case dimensions (l x h x w)260 x 85 x 180 mm

Performance

Measurement distance50.0  –  3000.0 mm

Properties

Recommended applications
Most machines using V belts, banded belts, ribbed belts, most other belts
Chain sprockets
MountingMagnetic, side mounted
Laser typeVisible red line laser
Laser wavelength635 nm
Laser power max1 mW
Laser line length (at 2 m)2.4 m
Measurement accuracy angular (at 2 m)0.02 °
Measurement accuracy offset0.5 mm
Transmitter weight0.25 kg
Target typeSet of 3 Passive targets
Target weight0.035 kg
Housing materialPC/ABS blend, overmoulded with TPU rubber
Colour
Blue
Dark Grey
Battery3x AAA (Alkaline (incl.) or Rechargable)
Battery life32 h
Degree of protection (IP)IP 40
Operating temperature range0.0  –  40.0 °C
Recommended storage temperature-20.0  –  60.0 °C
Relative humidity10 to 90%, non-condensing
Content
1x TKBA 11 transmitter unit
3x passive targets
3x AAA batteries
1x printed instructions for use
1x Carrying case (size A)
Total product weight0.84 kg

Logistics

Product net weight0.84 kg
eClass code23-05-19-01
UNSPSC code41112202



Click here for catalogue information

Product Guide Attached.
