SKF - Sprocket & Pulley alignment tool 2 x Red Las

aligned on the side face 50mm - 3000mm
Stock Code:
TKBA21_SKF
$3,358.47 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

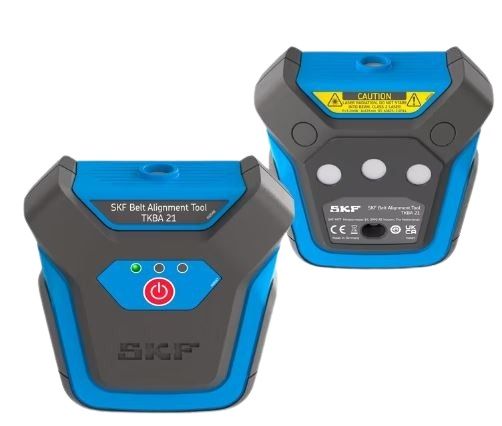

TKBA 21

SKF Belt Alignment Tool

The TKBA 21 alignment tool has two components: a laser-emitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 21 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. The case contents can be expanded with optional additional components such as belt tension gauges.

  • Fast, easy attachment – using powerful magnets
  • Two laser receiver/transmitter units
  • Simplified alignment process
  • Simultaneous adjustment of tension and alignment
  • Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
  • Can be used for medium distances
  • Extra space in case for optional additional tools (e.g. belt tension gauges)

Dimensions

Transmitter dimensions (l x h x w)98 x 97 x 52 mm
Target dimensions (l x h x w)98 x 97 x 52 mm
Case dimensions (l x h x w)

360 x 110 x 260 mm

Properties

Recommended applications
Most machines using V belts, banded belts, ribbed belts, most other belts
Chain sprockets
MountingMagnetic, side mounted
Laser typeVisible red line laser
Laser wavelength635 nm
Laser power max1 mW
Laser line length (at 2 m)2.4 m
Measurement accuracy angular (at 2 m)0.02 °
Measurement accuracy offset0.5 mm
Transmitter weight0.25 kg
Target typeSecond transmitter unit
Target weight0.25 kg
Housing materialPC/ABS blend, overmoulded with TPU rubber
Colour
Blue
Dark Grey
Battery3x AAA (Alkaline (incl.) or Rechargable)
Battery life32 h
Degree of protection (IP)IP 40
Operating temperature range0  –  40 °C
Recommended storage temperature-20  –  60 °C
Relative humidity10 to 90%, non-condensing
Content
2x TKBA 21 transmitter units
6x AAA batteries
1x printed instructions for use
1x Carrying case (size B)
Total product weight1.62 kg
