Sutton - D134 Panel Tupoint HSS 30(3.26mm)

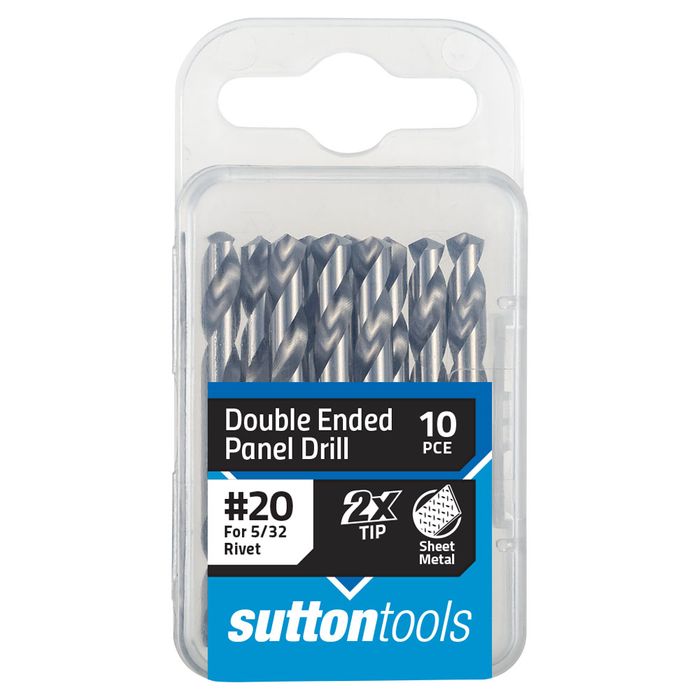

Tupoint - HSS - Pack of 10
Stock Code:
SUT-D1340326
$52.75 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    2 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

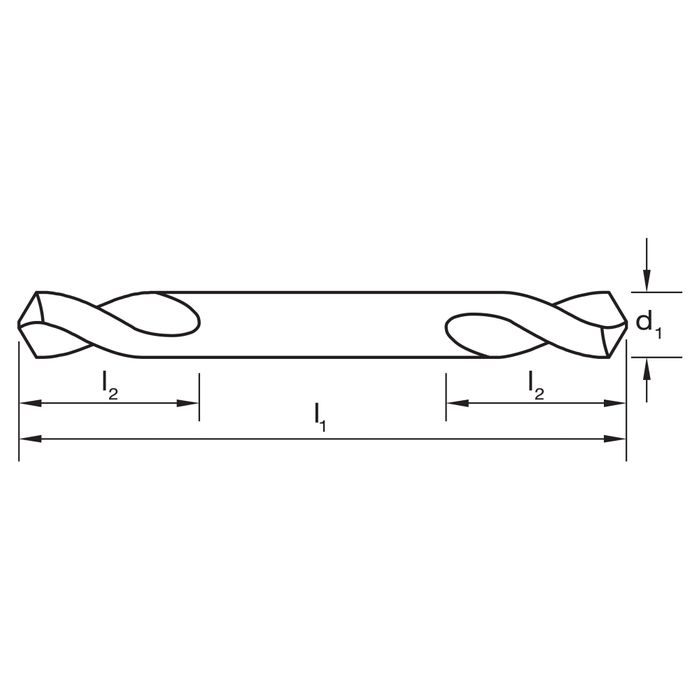

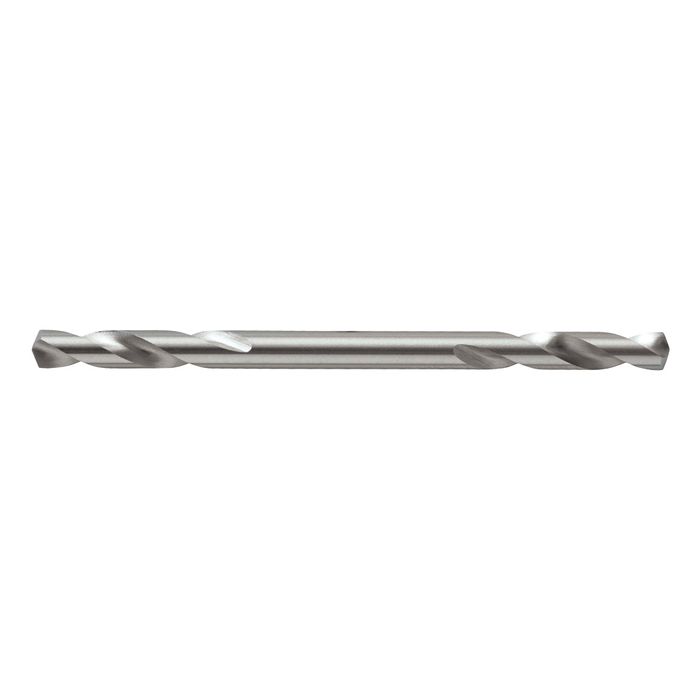

Panel Drills – Double Ended – Silver Bullet – 10 Pack

Sutton Tools Silver Bullet Panel Drills are developed to drill holes for rivets in flat and curved panels used in sheet metal fabrication. The double ended design doubles the life of the drill bit.
Note: Ensure the chuck jaws are fully tightened.

Features

135° self centering point minimises wandering when starting and ideal for thin materials
Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
Double ended design increases drill life. Ensure that the chuck jaws are fully tightened
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Bright
  • X: als
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Standard
  • Cutting Edges: ul

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

  • Brand Sutton Tools
  • Model Number D1340326
  • Barcode Number 9311963193762
  • Thread Diameter (inch) #30
  • Overall Length (inch) 2 1/8
  • Flute Length (inch) 5/8
  • Group Code D134
  • Type Panel Drill Bit
  • System of Measurement Imperial
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Point Angle 135
  • Point Form Standard
  • Point Tolerance h8

Click here for catalogue information
