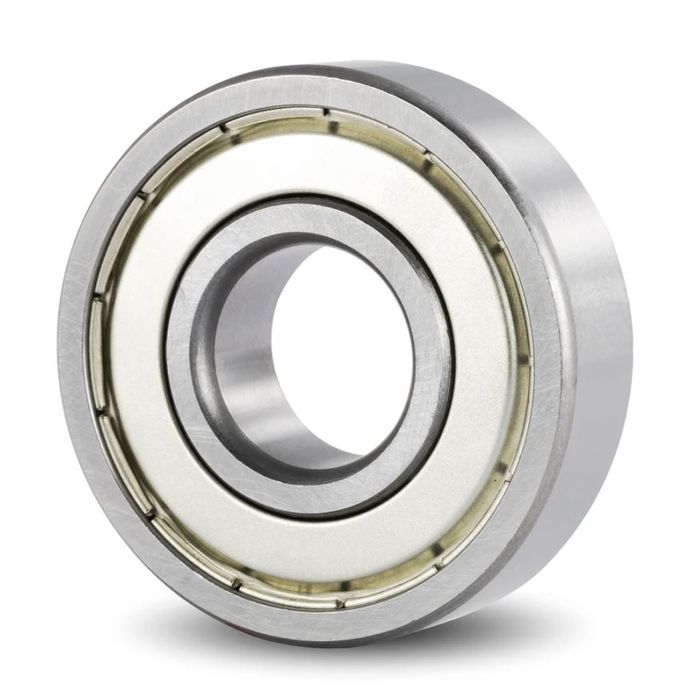

EZO - Deep Groove Ball Bearing

6 x 13 x 5
Stock Code:
686-ZZ-C3_EZO
$14.69 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

686 ZZ C3 ECO

Economy Deep Groove Ball Bearing

6x13x5 mm

For use in special conditions. The miniature ball bearing 686-ZZ / 2Z-C3 is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. Main dimensions according to DIN 625-1.

Features

  • Miniature ball bearing with smallest dimensions
  • Suitable for high radial loads and light axial loads in both directions
  • Suitable for high running accuracy and very high speeds
  • Seal: non-contact gap seal on both sides made of a profiled sheet steel disc (ZZ / 2Z) for higher speeds than with rubber seal
  • with increased radial internal clearance (C3): for high temperature gradient between the bearing rings or for fastening with press fit
  • good fixed bearing property, but can also be used as a floating bearing, each in both directions
  • Manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics.

Technical Data

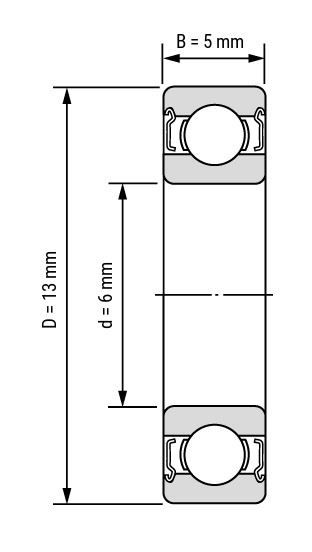

Inside Ø (mm):6
Outside Ø (mm):13
Width (mm):5
max. Operating Temperature:+120°C
min. Operating Temperature:-20°C
Tolerance Class:ABEC 1 / P0
Tolerance for inside-Ø (mm):0/-0,008
Tolerance for outside-Ø (mm):0/-0,008
Tolerance for width (mm):0/-0,12
Noise and vibration testing:Class V
Extended Inner Ring:no
Bore:cylindrical
Internal Clearance:C3 (increased clearance)
Seal:ZZ
Sealing material:Sheet Steel
Ring Material:Rolling Bearing Steel
Rolling Element Material:Rolling Bearing Steel
Cage Material:Sheet Steel
Magnetic:yes
Type of lubrication:greased
Lifetime lubricated:yes
Norm:DIN 625-1
Item weight:2,4 g

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    6 mm
  • Material:
    Chrome steel
  • Width:
    5 mm
  • Brand:
    EZO
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2Z (ZZ) Metal Shield - Both Sides
  • Diameter Outside:
    13 mm
  • Style:
    Standard
