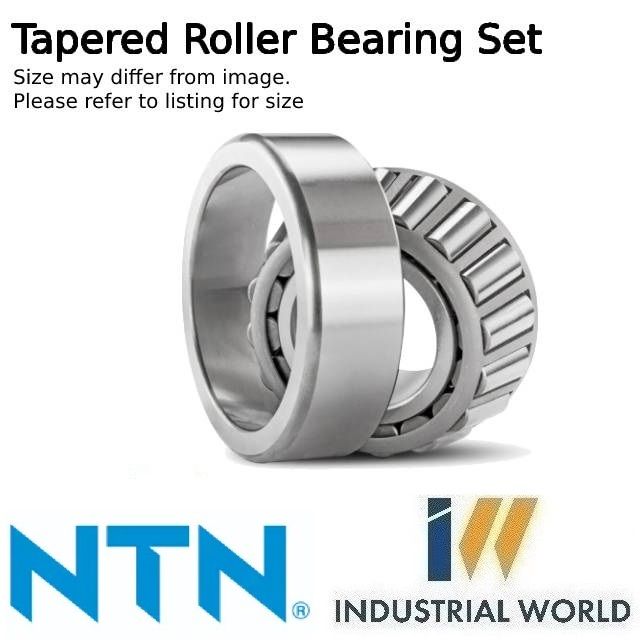

NTN - Taper Roller Bearing Set - Cup & Cone

Stock Code:
JHM534149-JHM534110_NTN
$757.99 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

JHM534149-JHM534110

NTN - Taper Roller Bearing Set - Cup & Cone

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

Product Specifications

BrandNTN
d - Internal diameter170 mm
D - External diameter230 mm
B - Bearing/Inner ring width38 mm
C - Outer ring width31 mm
T - Total width39 mm
a - Charge load application point43,7 mm
rs - Min fillet radius3 mm
r1s - Min fillet radius2,5 mm
Mass4,37 kg

Enter dimensions into the NTN Product Table to find the right sized bearing for you.


Click here for the NTN tapered roller product table

Click here for general NTN tapered roller information

Click here for bearing specific data

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    110 mm
  • Material:
    Chrome Steel
  • Width:
    47 mm
  • Brand:
    NTN
  • Metric/Imperial:
    Metric
  • Chain Series:
    HM522600
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    180 mm
