KOYO - Deep Groove Ball Bearing

100 X 150 X 24
Stock Code:
6020-2RS-C3_KOYO
$224.10 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6020-2RS-C3 KOYO

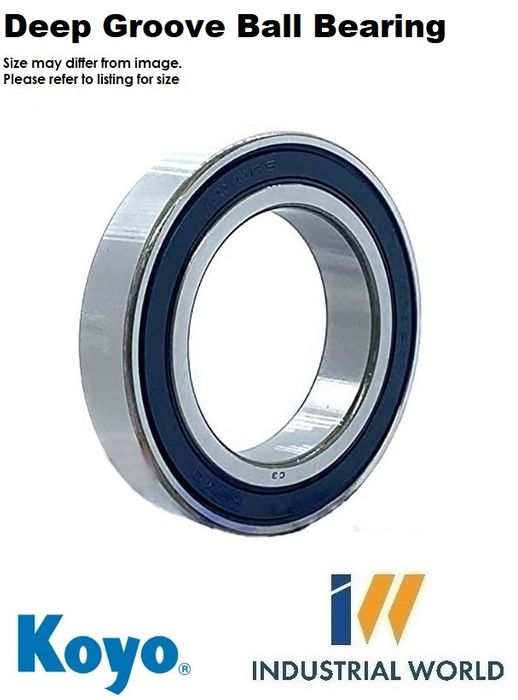

Koyo Deep Groove Ball Bearing

Deep Groove Ball Bearing Rubber Seal (C3) 100 x 150 x 24mm

6000 Series

Deep Groove Ball Bearing Rubber Seal with C3 Clearance.
6000 Series.

About Deep Groove Ball Bearing

Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.
Shielded/sealed type

Simplifies the sealing structure of applications.
Greasing is not necessary because bearings are pre-lubricated.
With locating snap ring

Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.
Extra-small ball bearings and miniature ball bearings

The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.
Features Deep Groove Radial Bearing

Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
The most popular rolling bearing type used in a wide variety of industries and applications.
The inner and outer rings have deep uninterrupted grooves.
They can support radial loading and a certain degree of axial loading in either direction
High-speed capability.
The Maximum style not to be used when axial loading or high speed is involved.
Sealed and shielded types are filled with an appropriate volume of grease.
Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel
Main Applications

Automotive: Transmissions, electrical devices, truck, and trailer equipment.
Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
Electrical Equipment: Standard motors, electric appliances for domestic use
Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.

Specifications

  • Model Number 6020-2RSC3/KOYO

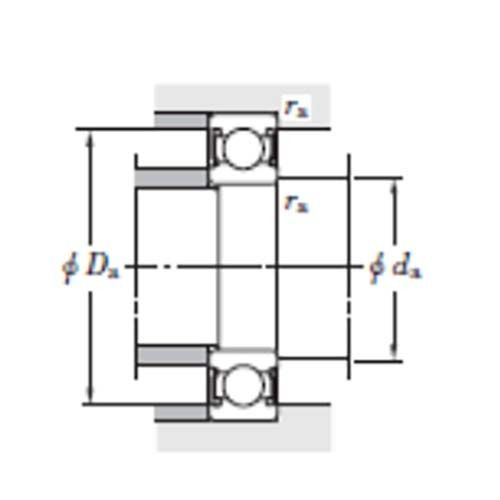

  • Mounting Dimension (mm) Ra Max1.5
  • Limiting Speed (min-1) Grease lub. (RS, 2RS) (Z)2500
  • Fatigue Load Limit (kN) Cu2.7

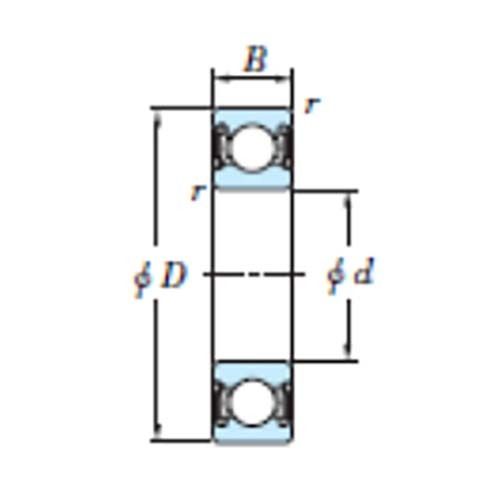

  • Bearing Width B (mm) 24
  • Bore Diameter x Outer Diameter x Width (mm)100 x 150 x 24
  • Mounting Dimension (mm) Da Max142
  • Boundary Dimension (mm) r min.1.5
  • Basic Load Rating (kN) C0r54.2
  • Outside Diameter D (mm) 150
  • Mounting Dimension (mm) Da Min108
  • Factor F 02.7
  • Basic Load Rating (kN) Cr75.2
  • Bore Diameter d (mm) 100
  • Type Deep-Groove Ball Bearings
  • Series 6000 Series

Koyo

Click here for deep groove ball bearing information

View bearing specific information

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    100 mm
  • Material:
    Chrome steel
  • Width:
    24 mm
  • Brand:
    KOYO
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    150 mm
  • Style:
    Standard
