SKF Double Row Yoke Cam Follower

30 x 72 x 23.8 mm Caged

Stock Code:

305806C-2Z_SKF

$175.86 incl GST

Stock Locations

Ballarat:

18 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

305806C-2Z SKF

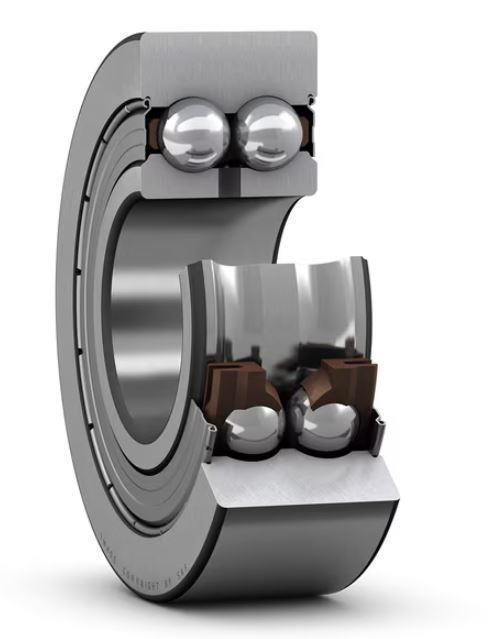

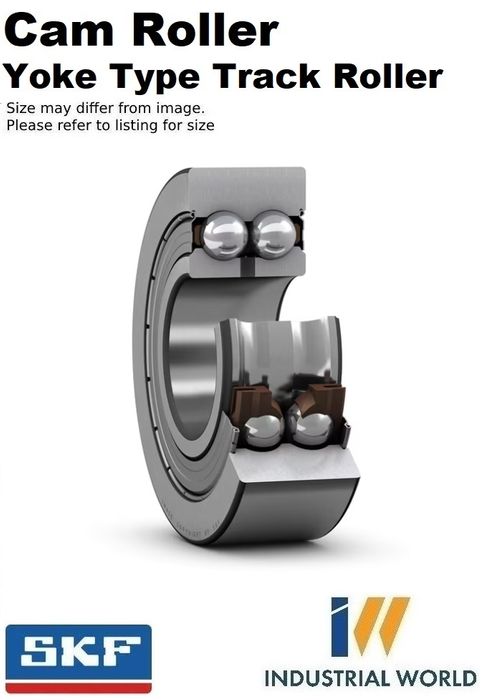

Cam roller (yoke-type track roller) with crowned outside surface, integral sealing and relubrication feature

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity and relatively high speed capability
Accommodate tilting moments
Long service life
Ready to mount
Integral sealing, for increased reliability, with relubrication feature

Applications

Metals
Mining, mineral processing and cement
Railways
Material handling
Agriculture
Construction

Dimensions

Functional outside diameter	72 mm
Bore diameter	30 mm
Width	23.8 mm

Properties

Bearing part	Complete track roller
Rolling elements	Balls
Number of rows	2
Outer ring profile	Crowned
Axial guidance of outer ring	Yes
Number of flanges, outer ring	0
Cage	With
Radial internal clearance	Not applicable
Axial internal clearance	Normal
Tolerance class	Normal (except crowned running surface)
Material, bearing	Bearing steel
Coating	Without
Sealing	Shield on both sides
Sealing type	Non-contact
Lubricant	Grease
Relubrication feature	With
