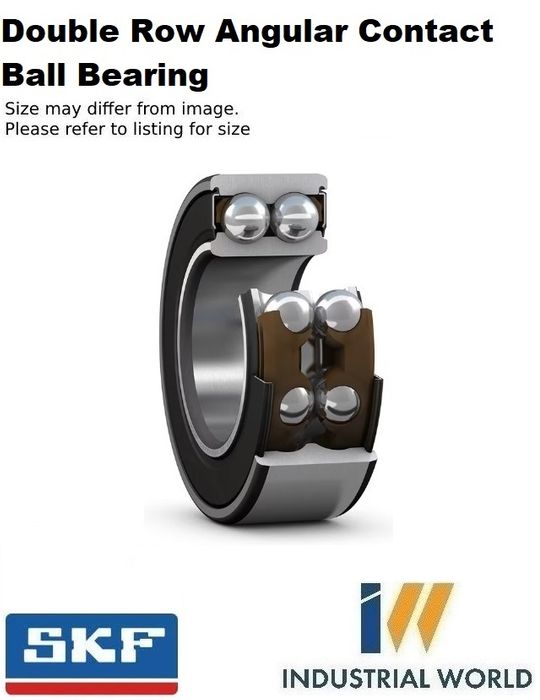

SKF - Double Row Angular Contact Ball Bearing

10 X 30 X 14 Polyamide Cage 3200A-2RS1TN9/MT33
Stock Code:
3200-A-TN9-2RS_SKF
$63.34 incl GST

Stock Locations

  • Ballarat:
    23 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3200-A-TN9-2RS SKF

Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

Dimensions

Bore diameter10 mm
Outside diameter30 mm
Width14 mm
Contact angle30 °

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageNon-metallic
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout

Performance

Basic dynamic load rating7.61 kN
Basic static load rating4.3 kN
Limiting speed17 000 r/min




Click here for catalogue information

Double Row Angular Contact Product Information


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    10 mm
  • Material:
    Chrome Steel
  • Width:
    14 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    30 mm
