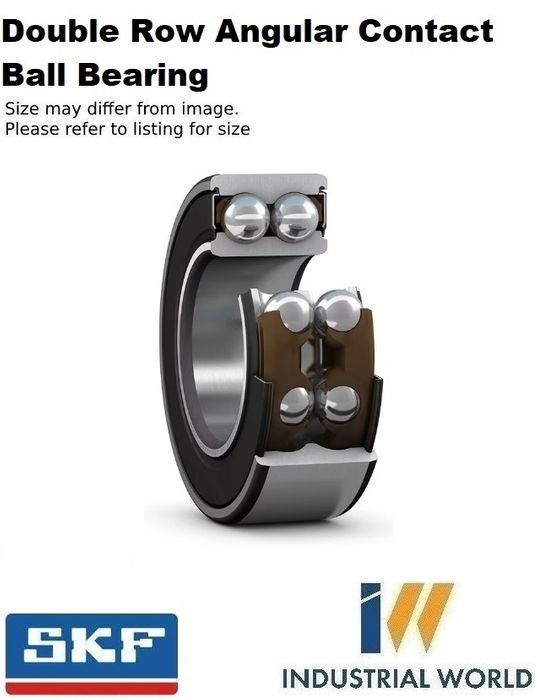

SKF - Double Row Angular Contact Ball Bearing

15 X 35 X 15.9 Polyamide Cage 3202A-2RS1TN9/MT33

Stock Code:

3202-A-TN9-2RS_SKF

$64.57 incl GST

Stock Locations

Ballarat:

25 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

3202-A-TN9-2RS SKF

Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Dimensions

Bore diameter	15 mm
Outside diameter	35 mm
Width	15.9 mm
Contact angle	30 °

Properties

Contact type	Normal contact (two-point contact)
Number of rows	2
Locating feature, bearing outer ring	None
Ring type	One-piece inner and outer rings
Cage	Non-metallic
Arrangement of contact angle (double-row bearing)	Back-to-back (O)
Matched arrangement	No
Universal matching bearing	No
Axial internal clearance	CN
Material, bearing	Bearing steel
Coating	Without
Sealing	Seal on both sides
Sealing type	Contact
Lubricant	Grease
Relubrication feature	Without
