SKF - Double Row Angular Contact Ball Bearing

50 X 90 X 30.2 Polyamide Cage 3210A-2RS1TN9/C3MT33
Stock Code:
3210-A-TN9-2RS-C3_SKF
$138.77 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
2 On Order
Make an Enquiry
Add to Favourites

Description

3210 A TN9 2RS C3 SKF

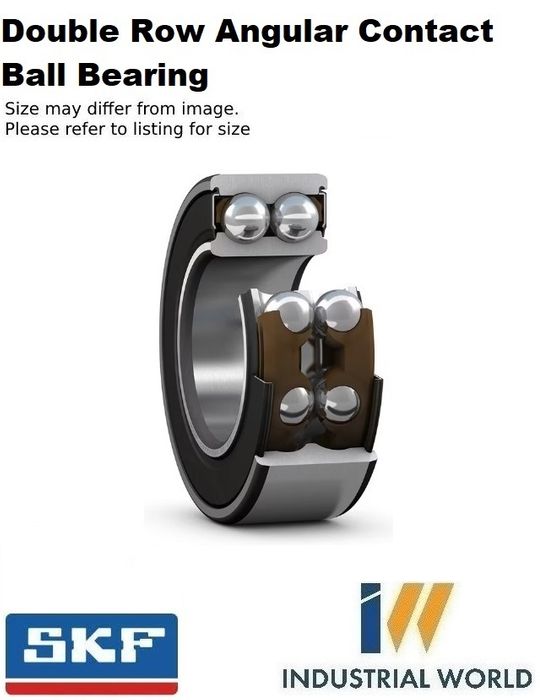

Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

Dimensions

Bore diameter50 mm
Outside diameter90 mm
Width30.2 mm
Contact angle30 °

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageNon-metallic
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantNone
Relubrication featureWithout

Performance

Basic dynamic load rating51 kN
Basic static load rating42.5 kN
Limiting speed4 800 r/min
SKF performance classSKF Explorer


Click here for catalogue information

View product table

Product Guide Attached


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50 mm
  • Material:
    Chrome Steel
  • Width:
    30.2 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    90 mm
