SKF - Spherical Thrust Bearing Cylindrical Bore

180 x 300 x 73
Stock Code:
29336E_SKF
$2,010.80 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

29336 E

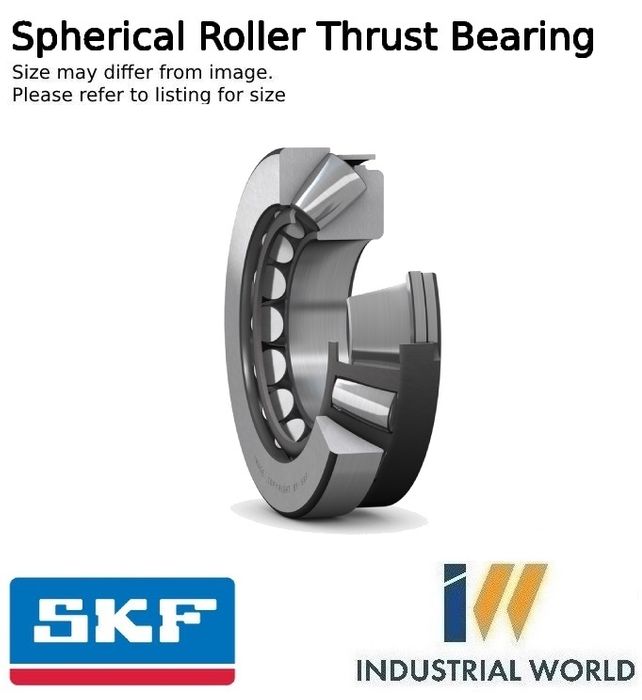

Spherical roller thrust bearing with stamped steel cage

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

  • High load carrying capacity
  • Can accommodate combined loads
  • Allow misalignment or create very stiff bearing arrangements
  • Long service life and low friction
  • Separable design

Dimensions

Bore diameter180 mm
Outside diameter300 mm
Height73 mm

Properties

Locating feature, housing washerNone
Bore typeCylindrical
CageSheet metal
Tolerance classNormal

Performance

Basic dynamic load rating1 430 kN
Basic static load rating4 300 kN
Reference speed1 200 r/min
Limiting speed2 000 r/min
SKF performance classSKF Explorer


Click here for product information

Click here for catalogue information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    180 mm
  • Material:
    Chrome Steel
  • Width:
    73 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Diameter Outside:
    300 mm
