SKF - Sealed Spherical Roller Bearing Tapered Bore

45 x 85 x 28
Stock Code:
BS2-2209-2RSK-VT143_SKF
$153.12 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

BS2-2209-2RSK/VT143

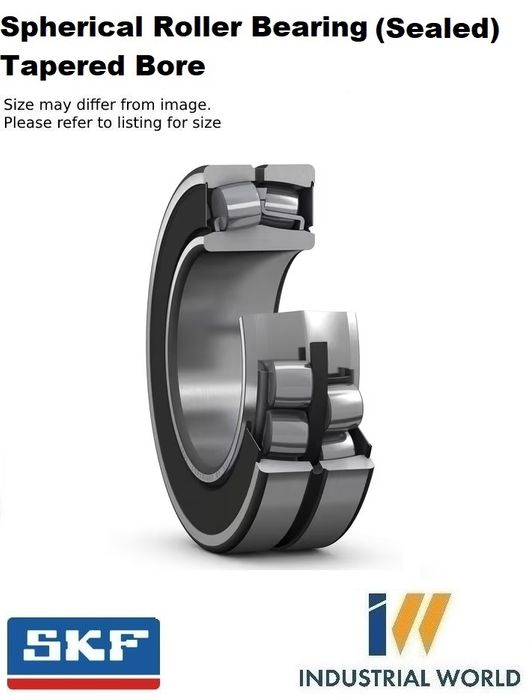

Spherical roller bearing with tapered bore, integral sealing and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter45 mm
Outside diameter85 mm
Width28 mm

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith

Performance

Basic dynamic load rating104 kN
Basic static load rating100 kN
Limiting speed3 600 r/min
SKF performance classSKF Explorer

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    45 mm
  • Material:
    Chrome Steel
  • Width:
    28 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Taper Bore (K)
  • Size:
    22209
  • Diameter Outside:
    85 mm
  • Style:
    Sealed Spherical Roller
