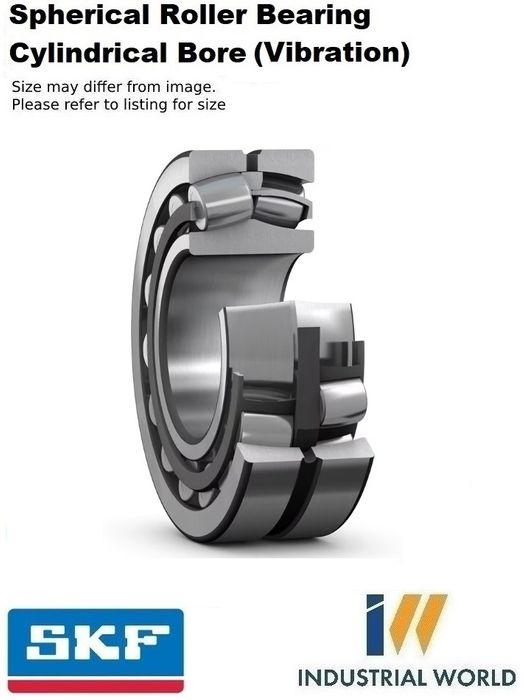

SKF - Vibration Spherical Roll Brg Cylindial Bore

170 x 360 x 120 C4 Clearance Steel Cage

Stock Code:

22334CC-JA-W33-VA405_SKF

$3,121.56 incl GST

Stock Locations

Ballarat:

2 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

22334 CCJA/W33VA405

Spherical roller bearing for vibratory applications, with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Accommodate very high vibration levels
Low friction and long service life
Increased wear resistance

Dimensions

Bore diameter	170 mm
Outside diameter	360 mm
Width	120 mm

Properties

Number of rows	2
Locating feature, bearing outer ring	Without
Bore type	Cylindrical
Cage	Surface-hardened sheet metal
Radial internal clearance	C4
Tolerance class for dimensions	Normal, bore to P5 and outside diameter P6
Tolerance class for run-out	Normal
Sealing	Without
Lubricant	None
Relubrication feature	With
Candidate for remanufacturing	Yes
