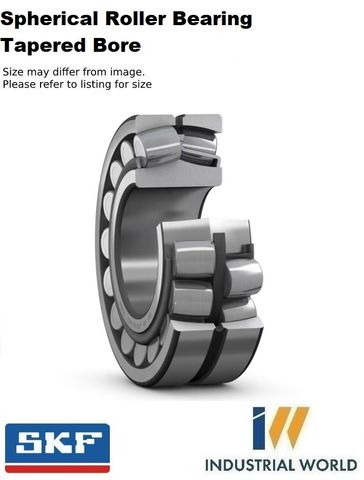

SKF - Spherical Roller Bearing Tapered Bore

110 x 200 x 53
Stock Code:
22322EK_SKF
$826.98 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

22322 EK
Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter110 mm
Outside diameter240 mm
Width80 mm

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Performance

Basic dynamic load rating989 kN
Basic static load rating1 120 kN
Reference speed2 000 r/min
Limiting speed2 800 r/min
SKF performance classSKF Explorer

SKF

Click here for catalogue information

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    110 mm
  • Material:
    Chrome Steel
  • Width:
    53 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Taper Bore (K)
  • Size:
    22322
  • Diameter Outside:
    200 mm
