SKF - Vibration Spherical Roll Brg Cylindial Bore

280 x 420 x 140 C4 Clearance Steel Cage
Stock Code:
24056CC-W33-C3_SKF
$4,673.22 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

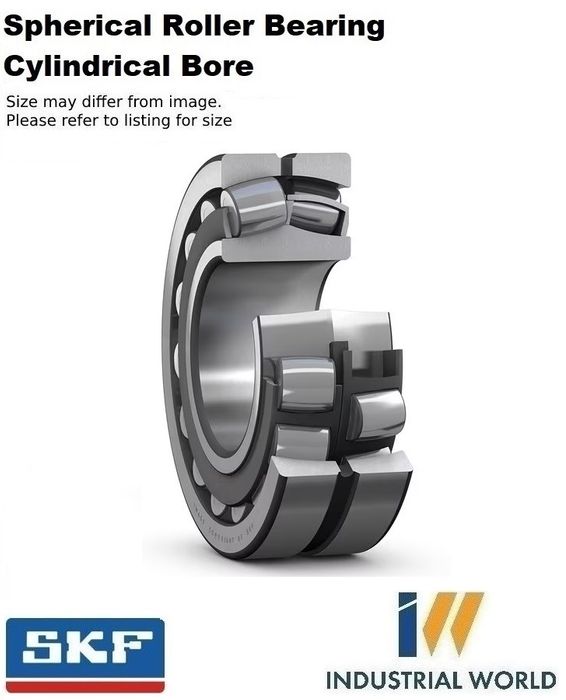

24056 CC/W33
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter280 mm
Outside diameter420 mm
Width140 mm

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceC3
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Performance

Basic dynamic load rating2 248 kN
Basic static load rating3 800 kN
Reference speed950 r/min
Limiting speed1 400 r/min
SKF performance classSKF Explorer

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    280 mm
  • Material:
    Chrome Steel
  • Width:
    140 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Cylindrical Bore
  • Size:
    24056
  • Diameter Outside:
    420 mm
