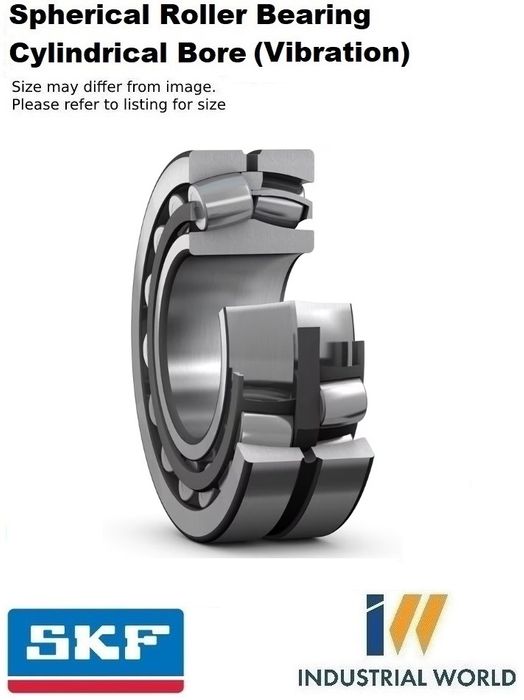

SKF - Vibration Spherical Roll Brg Cylindial Bore

200 x 420 x 138 C4 Clearance Steel Cage
Stock Code:
22340CC-JA-W33-VA405_SKF
$5,625.84 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

22340 CCJA/W33VA405
Spherical roller bearing for vibratory applications, with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Accommodate very high vibration levels
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter200 mm
Outside diameter420 mm
Width138 mm

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSurface-hardened sheet metal
Radial internal clearanceC4
Tolerance class for dimensionsNormal, bore to P5 and outside diameter P6
Tolerance class for run-outNormal
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Performance

Basic dynamic load rating2 439 kN
Basic static load rating2 900 kN
Reference speed1 200 r/min
Limiting speed1 500 r/min
SKF performance classSKF Explorer

Click here for catalogue information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    200 mm
  • Material:
    Chrome Steel
  • Width:
    138 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C4 or Higer Clearance
  • Type:
    Cylindrical Bore
  • Size:
    22340
  • Diameter Outside:
    260 mm
  • Style:
    Vibrating Screens
