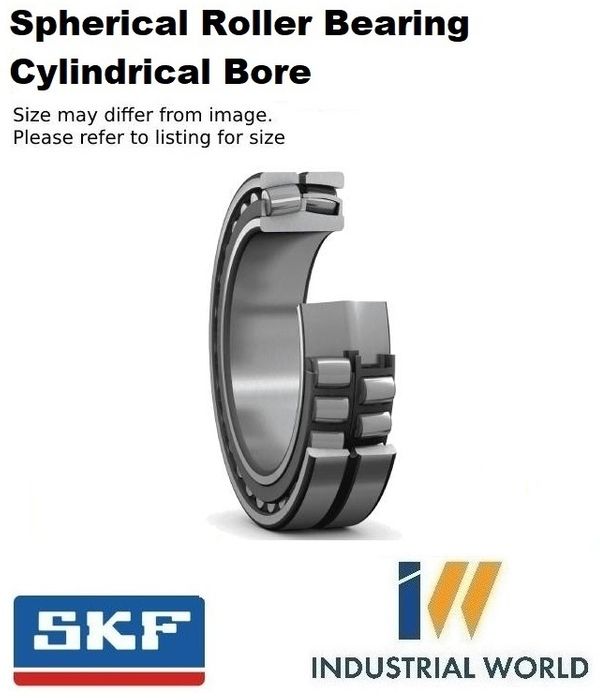

SKF - Spherical Roller Bearing Cylindrical Bore

260 x 400 x 104
Stock Code:
23052CC-W33_SKF
$3,070.23 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23052 CC/W33
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter260 mm
Outside diameter400 mm
Width104 mm

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Performance

Basic dynamic load rating1 675 kN
Basic static load rating2 550 kN
Reference speed1 300 r/min
Limiting speed1 700 r/min
SKF performance classSKF Explorer


Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    260 mm
  • Material:
    Chrome Steel
  • Width:
    104 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    23052
  • Diameter Outside:
    400 mm
