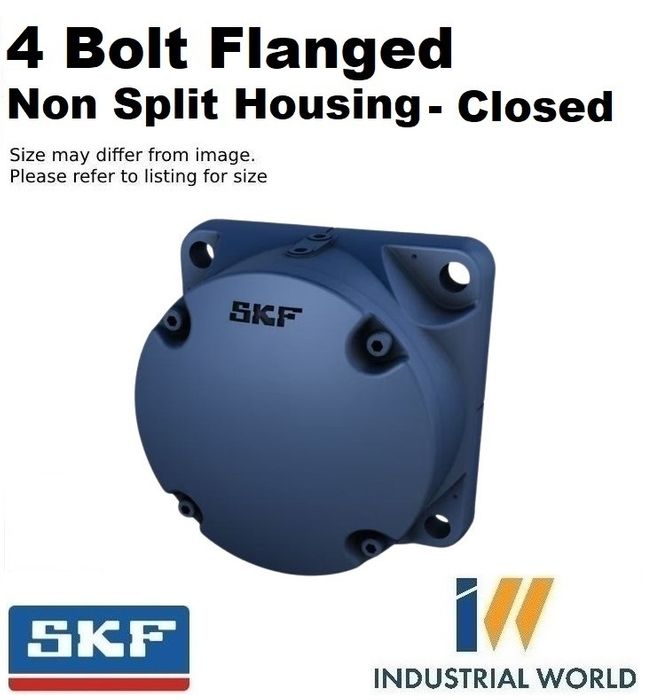

SKF - 4 Bolt Flanged Housing - 75 mm shaft

CLOSED - includes grease seal
Stock Code:
FNL517A_SKF
$586.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FNL 517 A
FNL cast flanged, non-split housing

FNL cast flanged, non-split housings are well-proven machine parts that provide simple and reliable housing in applications without horizontal frames. They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. FNL housings are supplied with a cover either for shaft ends (suffix A) or for through shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.

  • Well-proven
  • Less need for maintenance

Dimensions

Diameter of bearing seat150 mm
Centre distance between bolt holes170 mm
Attachment bolt diameter16 mm

Properties

Housing typeFlanged
Housing configurationOne-piece
Mounting arrangementShaft end
Number of bolt holes for fasteners4
Material, housingCast iron
Bearing housing seal typeLip seal
Housing lubrication feature/possibilityGrease

Logistics

Product net weight12.7 kg
eClass code23-05-17-01
UNSPSC code3117151

Click here for catalogue information

Click here for series details

Product Guide Attached
