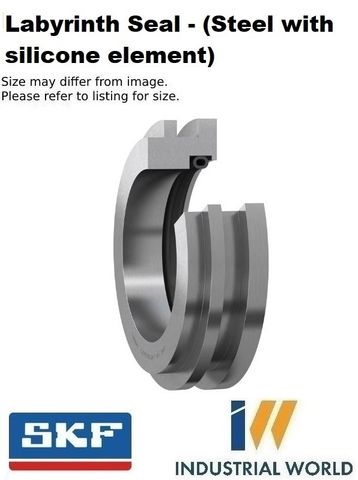

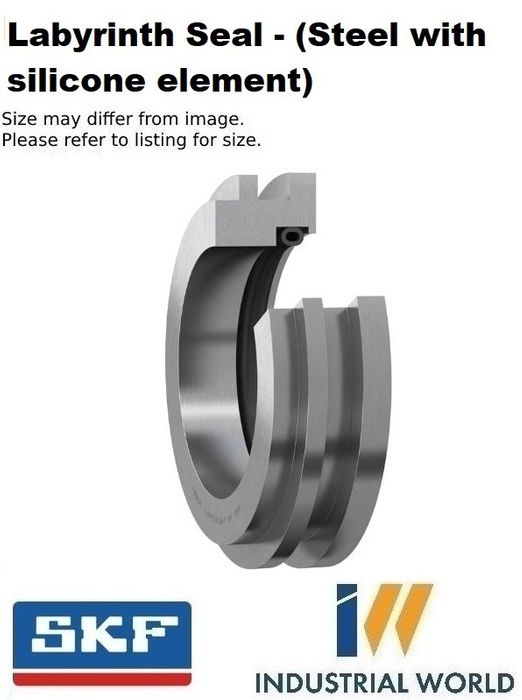

SKF - Labyrinth Seal 60 mm shaft

steel with Silicone o-ring (one side)
Stock Code:
TSN613S_SKF
$459.10 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TSN 613 S
Labyrinth seal

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective

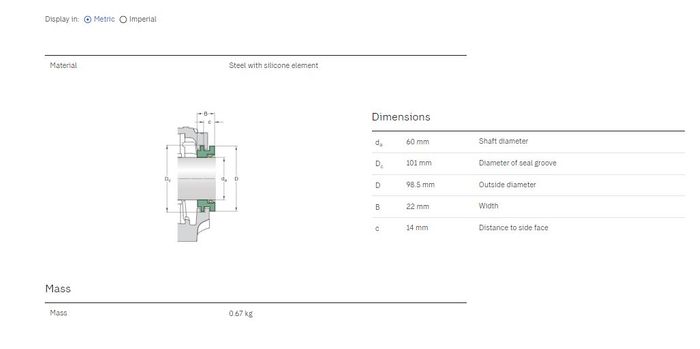

Dimensions

Outside diameter98.5 mm
Shaft diameter60 mm
Housing groove diameter101 mm
Width22 mm

Properties

Accessory typeHousing seal
Sealing typeLabyrinth
MaterialSteel with silicone element

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel with silicone o-ring
  • Brand:
    SKF
