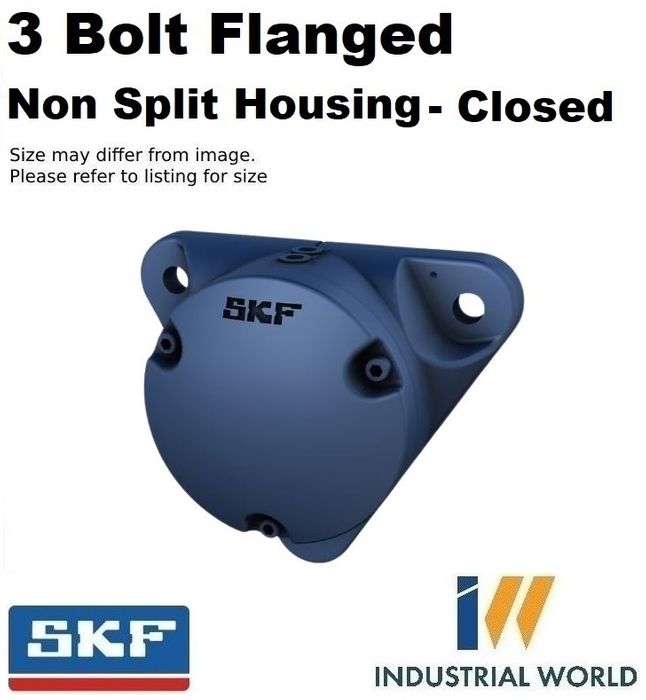

SKF - 3 Bolt Flanged Housing - 35 mm shaft

CLOSED - includes grease seal
Stock Code:
FNL508A_SKF
$266.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FNL 508 A
FNL cast flanged, non-split housing

FNL cast flanged, non-split housings are well-proven machine parts that provide simple and reliable housing in applications without horizontal frames. They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. FNL housings are supplied with a cover either for shaft ends (suffix A) or for through shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.

  • Well-proven
  • Less need for maintenance

Dimensions

Diameter of bearing seat80 mm
Pitch diameter of bolt holes of round and triangle flange type housing140 mm
Attachment bolt diameter12 mm

Properties

Housing typeFlanged
Housing configurationOne-piece
Mounting arrangementShaft end
Number of bolt holes for fasteners3
Material, housingCast iron
Bearing housing seal typeLip seal
Housing lubrication feature/possibilityGrease

Logistics

Product net weight2.5 kg
eClass code23-05-17-01
UNSPSC code31171519

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Brand:
    SKF
