SKF - SPHERICAL PLAIN BEARING

4 x 12 x 5/3
Stock Code:
GE4C_SKF
$23.86 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

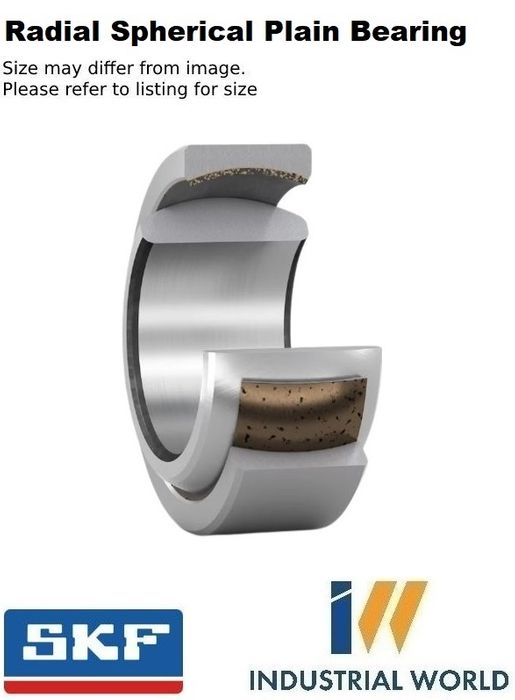

GE 4 C
Radial spherical plain bearing, maintenance-free, metric sizes

These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.

  • Designed for radial and combined radial and axial loads
  • Long service life and maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • High operating temperatures
  • High sliding velocities and small operating clearances

Dimensions

Bore diameter4 mm
Outside diameter12 mm
Width, inner ring5 mm
Width, outer ring3 mm

Properties

Sliding contact surface combinationSteel/PTFE sintered bronze
Material, inner ringBearing steel
Material, outer ringSteel
MaintenanceMaintenance-free
SealingWithout
Relubrication featureWithout

Performance

Basic dynamic load rating2.16 kN
Basic static load rating5.4 kN

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details
