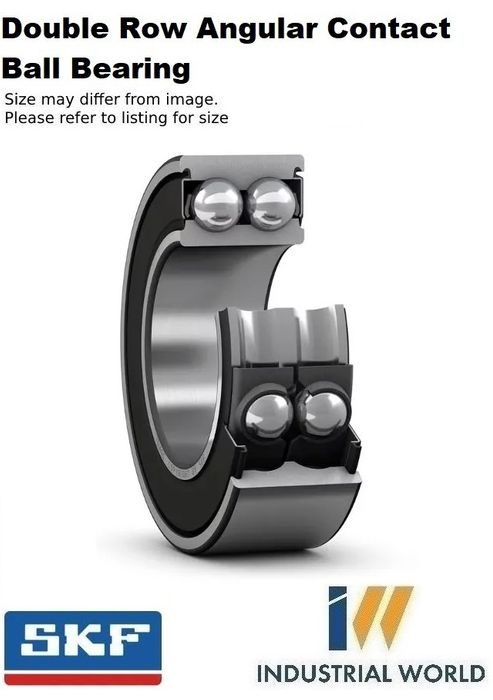

SKF - Double Row Angular Contact Ball Bearing

55 x 120 x 49.2 Polyamide Cage 3311A-2RS1/C3MT33
Stock Code:
3311-A-TN9-2RS-C3_SKF
$496.13 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3311 A-2RS1/C3MT33

Double row angular contact ball bearing

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space, and are particularly suitable in applications where a stiff bearing arrangement is required. They can accommodate radial loads, axial loads in either direction and tilting moments. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.

  • High-speed capability
  • Accommodate relatively high radial loads and large axial loads in both directions
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings

Dimensions

Bore diameter55 mm
Outside diameter120 mm
Width49.2 mm
Contact angle30 °

Performance

Basic dynamic load rating112 kN
Basic static load rating81.5 kN
Limiting speed3 800 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageSheet metal
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantNone
Relubrication featureWithout

Logistics

Product net weight2.23 kg
eClass code23-05-08-03
UNSPSC code31171531


Click here for catalogue information

View Product Table

Product Guide Attached


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    55 mm
  • Material:
    Chrome Steel
  • Width:
    49.2 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    120 mm
