NSK WIDE INNER RING BEARING

35 x 72 x 17
Stock Code:
AELS207_NSK
$94.64 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AELS207 NSK

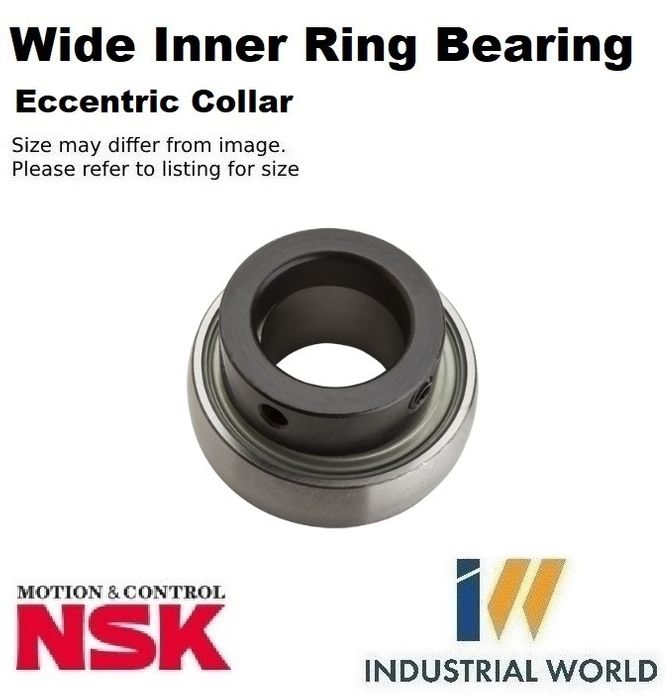

NSK Insert Bearing Eccentric Collar Type

AELS207W3-35mm x 72mm x 25.4mm (Each)

Insert bearings are based on deep groove ball bearings, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto shafts.

Quick and easy to mount
The spherically shaped outside surface can comensate for static misalignment of the shaft
Suitable where predominantly radial loads must be supported
Image for representation purposes only, actual product may differ

Technical Specifications

Internal Diameter (d)35mm
Outside Diameter (D)72mm
Width (B1)38.9mm
Width (B)25.4mm
Basic dynamic load rating25700 N
Basic static load rating15300 N
Limiting speed (Grease)4200 rpm

Click here for catalogue information

NSK ball bearing unit information
