SKF - Adapter Sleeve 280 mm Bore

Nut = HM3160 Tr300X4 Washer = MS3160
Stock Code:
H3160_SKF
$1,621.62 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

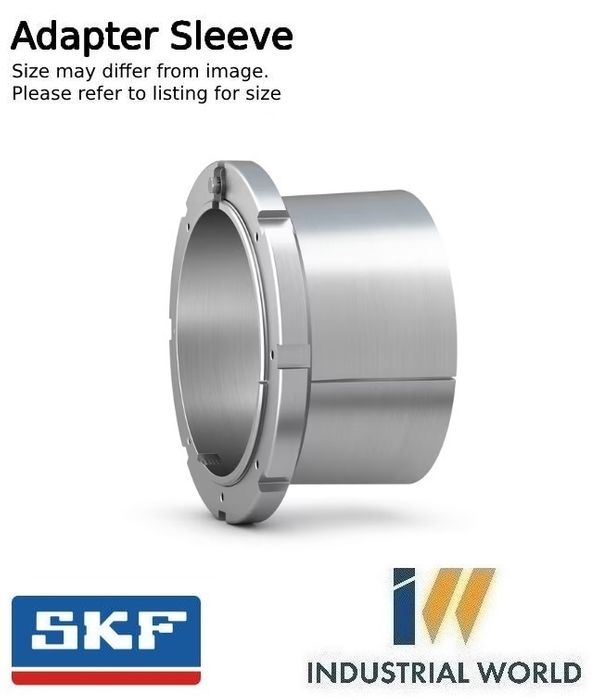

H 3160
Adapter sleeve with HM lock nut and MS locking clip, metric dimensions

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a HM lock nut and a MS locking clip.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter280 mm
Width208 mm
Thread designationTr 300x4

Properties

Taper1:12
Holes for oil injectionWithout

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
