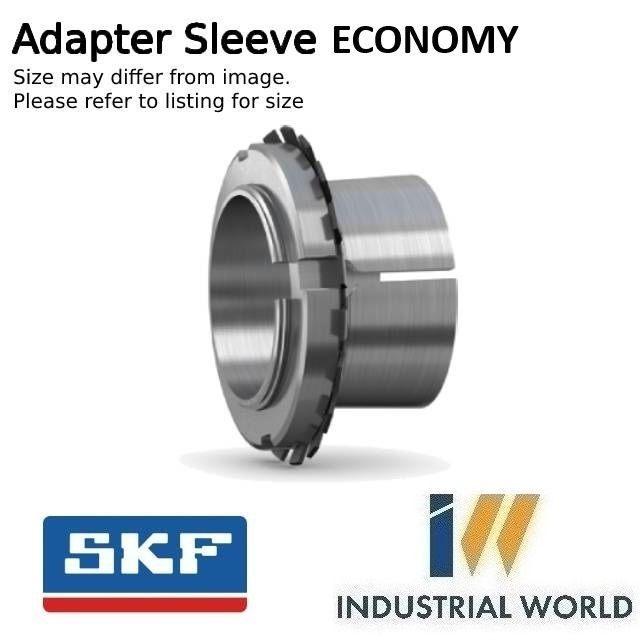

SKF Eco - Adapter Sleeve 35 mm Bore

Nut = KM08 M40x1.5 Washer = MB08
Stock Code:
H308/PC_SKF
$9.42 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

H 308
Adapter sleeve with KM lock nut and MB lock washer, metric dimensions

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter35 mm
Width36 mm
Thread designationM40x1.5

Properties

Taper1:12
Holes for oil injectionWithout

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Thread Size:
    M40x1.5
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
