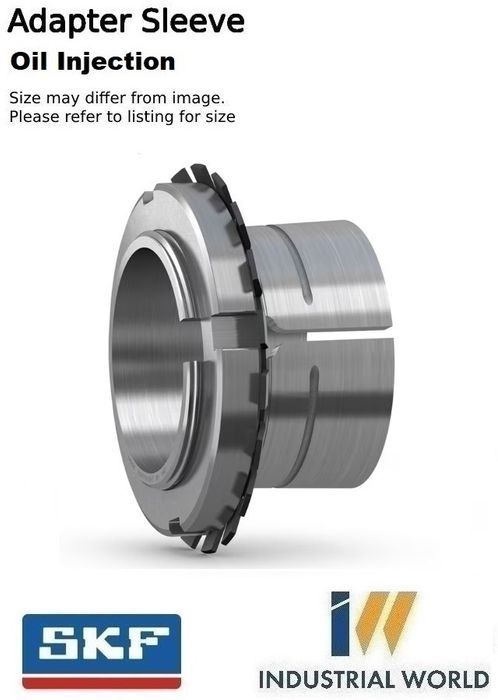

SKF- Adapter Sleeve 170 mm Bore - Oil Injection

Nut = KML38 M190x3 Washer = MBL38
Stock Code:
OH3038H_SKF
$942.26 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

OH 3038 H
Adapter sleeve for oil injection mounting with KM lock nut and MB lock washer, metric dimensions

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter170 mm
Width112 mm
Thread designationM 190x3

Properties

Taper1:12
Holes for oil injectionWith

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
