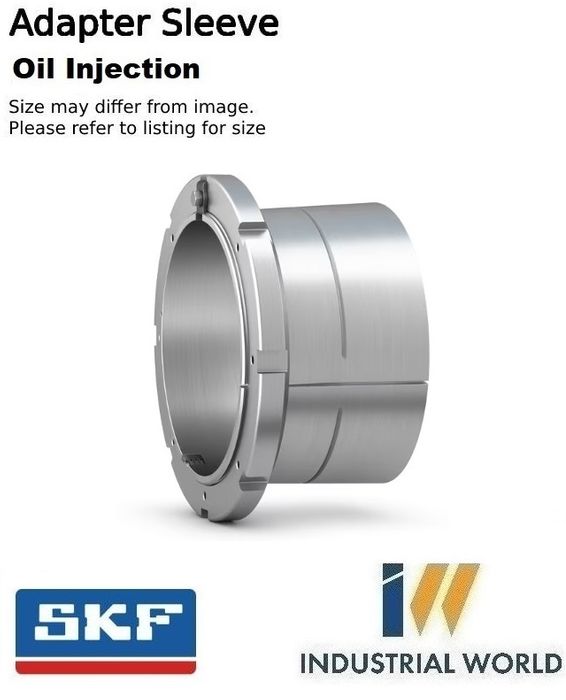

SKF - Adapter Sleeve 450 mm Bore -OIL Injection

Nut = HM 3196 Tr 480x5 Clip = MS 3196
Stock Code:
OH3196H_SKF
$12,024.03 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

OH 3196 H
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter450 mm
Width335 mm
Thread designationTr 480x5

Properties

Taper1:12
Holes for oil injectionWith

Click here for catalogue information

Click here for series details

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
