SKF - Round Flanged Roller Bearing Unit

2 Inch (50.8 mm Shaft) FYRP2
Stock Code:
F4BRP200-SRB-SRE_SKF
$742.83 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

F4BRP 200-SRB-SRE

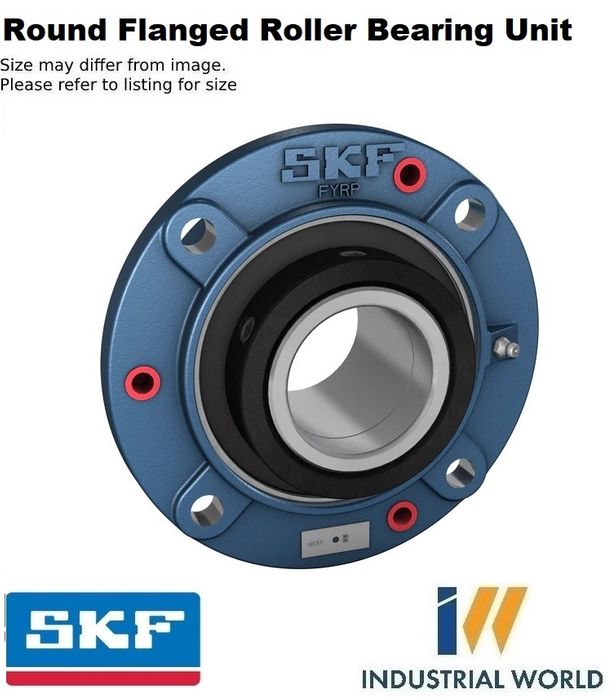

Round piloted flanged roller bearing unit, four-bolt, set screw locking

Four-bolt round piloted flange roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that have a machined extension on one side to fit into a precise bulk head opening. The units are shaft-ready, pre-assembled and pre-greased, for installation right out of the box. Locating and non-locating variants can be specified while the standard set screw mounting accommodates rotation in both directions. End covers are optional.

  • Ready to mount
  • Enables precise locating
  • Factory lubricated and sealed
  • Long service life
  • Minimal maintenance

Dimensions

Shaft diameter50.8 mm
Housing overall width63.5 mm
Width, total79.375 mm
Attachment bolt diameter11.113 mm
Pitch diameter of bolt holes of round and triangle flange type housing136.525 mm
Bearing width, total73.025 mm

Properties

Housing typeFlanged, piloted
Flanged housing typeRound
Number of bolt holes for fasteners4
Bearing insertSpherical roller bearing
Retaining feature, inner ringSet screws
Bearing positionNon-locating
Bore typeCylindrical
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Bearing housing seal typeRadial lip seal
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Performance

Basic dynamic load rating84.5 kN
Basic static load rating100 kN
Limiting speed4 100 r/min

Click here for product information

Click here for catalogue / range information

View product table


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50.80 mm (2 Inch)
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
