SKF - Flanged Roller Bearing Unit w Cast Housing

Non-Locating 75mm Shaft-Double Lip Seal

Stock Code:

FYNT75L_SKF

$1,469.29 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

FYNT 75 L SKF

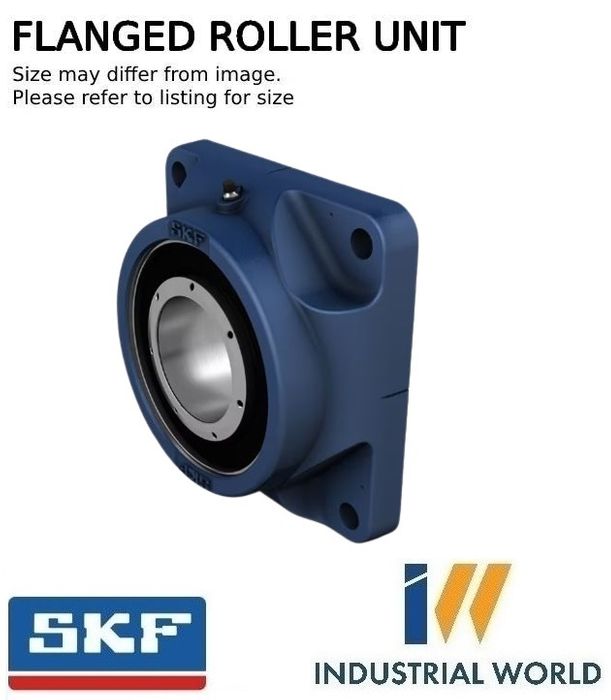

Square flanged roller bearing unit with SKF ConCentra locking, metric series

Square flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.

Ready to mount
Factory lubricated and sealed
Long service life
Minimal maintenance
Non Locating

Dimensions

Shaft diameter	75 mm
Housing overall width	82 mm
Overall width, total	81.3 mm
Centre distance between bolt holes	170 mm
Attachment bolt diameter	16 mm
Bearing width, total	72 mm

Properties

Housing type	Flanged
Flanged housing type	Square
Number of bolt holes for fasteners	4
Bearing insert	Spherical roller bearing
Retaining feature, inner ring	SKF ConCentra
Bearing position	Non-locating
Bore type	Cylindrical
Material, housing	Cast iron
Material, bearing	Bearing steel
Coating	Without
Bearing housing seal type	Radial lip seal
Sealing, unit	Optional end cover
Lubricant	Grease
Relubrication hole	With
Grease fitting	With
