Timken - Tapered Roller Bearing Single Cone

1.97 Inch (50.01 mm) OD 0.38 Inch (9.53 mm) W
Stock Code:
07196_TIMKEN
$28.44 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

07196

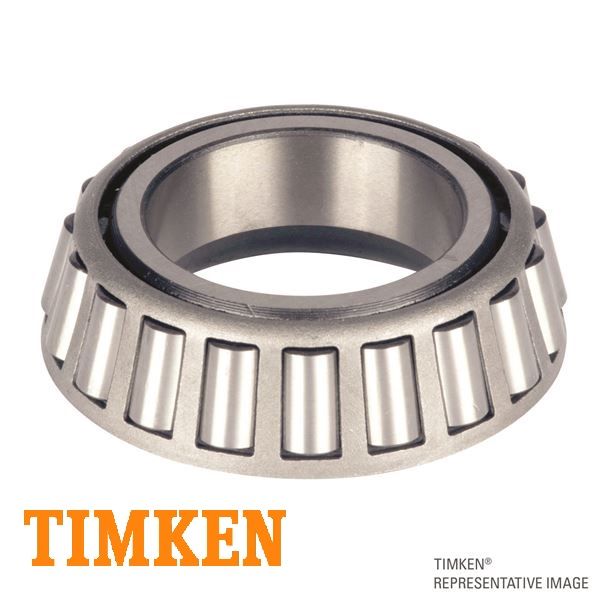

Timken - Tapered Roller Bearing Single Cone
1.97 Inch (50.01 mm) OD 0.38 Inch (9.53 mm) W

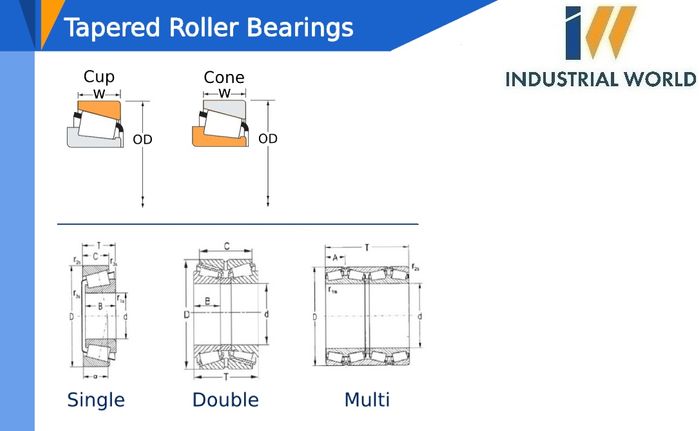

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

Timken

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50.01 mm (1.97 Inch)
  • Material:
    Chrome Steel
  • Width:
    9.53 mm (0.38 Inch)
  • Brand:
    TIMKEN
  • Metric/Imperial:
    Metric
  • Chain Series:
    7000
  • Type:
    Cone
  • Diameter Outside:
    -
