Shaft Alignment Tool upto 10 mtr 40 Deg Rotation

Horoizontal & Vertial - BYO Phone/Tablet
Stock Code:
TKSA71/PRO_SKF
$22,285.32 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKSA 71/PRO
High end shaft alignment tool with additional accessories and trolley case

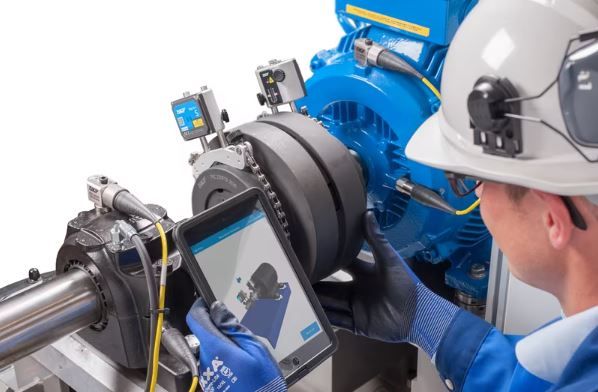

The TKSA 71/PRO is designed for professional alignments in harsh industrial environments and offers a variety of features for alignment experts. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications allow convenient alignments of different types of applications, including horizontal and vertical shafts, spacer shafts and machine trains. The TKSA 71/PRO set includes accessories to support professional alignements.

  • Intuitive software applications
  • Guided alignment processes and explanatory videos
  • Comprehensive accessories and dedicated software applications
  • Up to 10 m measurement distance, disturbance compensation and full measurement flexibility
  • Only 40° of shaft rotation needed, automatic measurement mode and customised alignments with target values
  • Protection against harsh environments (IP 67)
  • Ultra-compact measuring units allow alignments in extremely narrow spaces
  • The set includes accessories of the pro-version
  • Free apps and demonstration mode and tutorial videos for performing alignments
  • Robust trolley case and wireless in-case charging

Dimensions

Maximum coupling height45 mm
Maximum coupling height with extension165 mm
Total product weight13.5 kg

Properties

Alignment methods
3 position measurement 9 -12 -3
Automatic measurement
Free measurement (only 40° shaft rotation needed)
Recommended applications
Horizontal shafts
Vertical shafts
Machine trains
Spacer shafts
Soft foot
Values
Live correction valuesVertical and horizontal
Special features
Machine library
Pictures in reports
QR code reading
Target values
Disturbance compensation
Free 3D machine view
Screen rotation on tablets
Automatic .pdf report
Sensors
20 mm PSD
Inclinometer ±0.1°
CommunicationsBluetooth 4.0 LE
Measurement distance0.07 to 10 m
Measuring error (percent)1 %
MaterialMeasurement units: anodized aluminum front and PC/ABS plastic back cover
BatteryMeasuring units: rechargable 1000 mAh Li-ion battery
Battery life8 h
Operating temperature range0  –  45 °C
DisplayNone, Smartphone or tablet needed
Operating system
min. Android 9
min. Apple iOS 9
Software updateVia Apple AppStore and Google Play Store
Suitable operating devices
Android Tablet or Smartphone with min. Android 9
Apple iPad, iPhone with min. iOS 9
Laser typeRed line
Mounting2x V-brackets (width 15 mm) with chains and magnets
Shaft diameter20 to 150 mm
Shaft diameter with extensionUp to 450 mm with extension chains (included)
Power adapter
Wireless charging via supplied charging pods
Micro USB to USB split charging cable included
Compatible with standard 5V USB chargers (not included)
Degree of protection (IP)IP 67 for measuring units and carrying case
CertificationsCalibration certificate (2 years validity)
Part of a kitno
Case dimensions (l x h x w)610 x 265 x 430 mm (24 x 10.4 x 16.9 in.)
Content
Set of 2 Measuring units (M and S)
Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets
Set of 8 threaded extension rods 120 mm (4.7 in)
Set of 2 extension chains 1 m (3.3 ft)
Set of 2 magnetic bases
Set of 2 sliding brackets
Set of 2 offset brackets 50 mm (2 in)
Micro USB to USB split charging cable
Set of 2 wireless charging pads
Measuring tape
Certificate of calibration and conformance
Quick start guide
Trolley case
