SKF Grease Gun - 400g Trigger - With Flex hose

300 bar (4,350 psi)
Stock Code:
LAGH400_SKF
$114.99 incl GST

Stock Locations

  • Ballarat:
    7 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LAGH 400

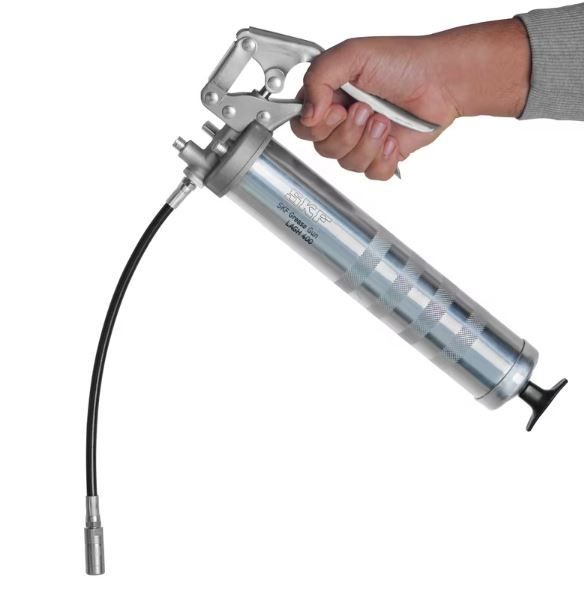

SKF Grease Gun LAGH 400

The SKF Grease Gun LAGH 400 is ideal for usage in agricultural, industrial and construction industries and for private use. The grease gun is equipped with a filler nipple and air-release valve for easy re-filling by filler or grease pumps. It can also suitable for usage with grease cartridges. The ergonomic design for one handed operation, the flexible high pressure hose and the possibility to mount the hose in both horizontal and vertical position makes this grease gun very versatile and easy to use.

  • Easy to use with only one hand
  • Refillable: grease filling nipple and de-airing valve allow filling up by filler or grease pumps
  • Heavy duty: Operating pressure up to 300 bar (4 350 psi)
  • Flexible hydraulic hose can be bent and mounted horizontally or vertically on the grease gun

Dimensions

Reservoir volume500 ml
Filling connectionDIN 1283
Length370 mm

Performance

Maximum pressure30 MPa
Maximum pressure300 bar
Volume per stroke0.46 m

Properties

Recommended applicationsFor manual filling of greasing points in industrial, construction and agricultural applications
Grease supplyLoose or Cartridge
Use of standard grease cartridgesYes, type DIN 1284
NLGI class of lubricant (max)2
Suitable for grease nipplesStandard nipples as per DIN 71412
OperationOne handed
Pipe/Hose thread connectionM10x1
Extension pipeOptional
HoseYes, 300mm
Can be filled with Grease filler pumpYes, with SKF LAGF 18 or LAGF 50
Total product weight1.15 kg

Click here for product information

Click here for catalogue / range information

Product Guide Attached
