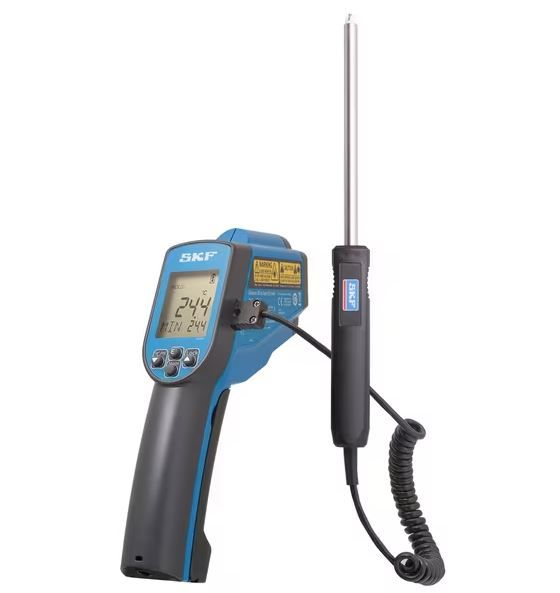

SKF INFRARED THERMOMETER Emissivity adust + probe

-64 Dec C +1400 Dec C 75:1 Ratio

Stock Code:

TKTL31_SKF

$703.74 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TKTL 31
High performance infrared thermometer, DS 75:1, adj. emissivity,

(probe included)

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications, this in order to perceive information on abnormalities in operating. SKF Infrared thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

Monochrome display, backlitDual laser targetingType-K thermocouple probeAdjustable emissivityHigh accuracyFast response timeDS ratio of 75:1

Performance

Temperature range using infrared	-60 – 1600 °C
Temperature range using probe	-64 – 1400 °C
Distance to spot ratio	75:1

Properties

Recommended applications	Used in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
Probe	K type probe, TMDT 2-30 included (max. 900 °C)
Emissivity	0.1 – 1
Accuracy +/-	1 %
Display	Black/White backlit LCD %
Response time	1 000 ms
Resolution	0.1 °C/F (below 999.9) 1 °C/F (above 1000) ms
Spectral response	8 – 14 µm
Measurement modes	Maximum Minimum Average Difference (between min and max) Probe/IR dual temperature µm
Alarms	High and low level alarm with warning sound
Laser type	2 x red targeting laser dots
Laser wavelength	635 nm
Laser power max	1 000 000 nm
Laser power class	2 mW
Auto switch off	Automatic, 60 seconds after trigger release in IR mode (60 minutes can be manually selected) and 12 minutes after trigger release in probe mode
Tripod connector	Yes, (1/4-20 UNC)
Housing material	PC/ABS blend
Colour	Blue Dark Grey
Battery	2x AAA (Alkaline (incl.) or Rechargable)
Battery life	3 h
Power adapter	No h
Instrument dimensions	203 x 197 x 47 mm
Instrument Weight	390 g
Degree of protection (IP)	IP 30
Operating temperature range	0 – 50 g
Recommended storage temperature	-10 – 60 °C
Relative humidity	10 to 95%, non-condensing °C
Case dimensions (l x h x w)	530 x 85 x 180 mm °C
Content	1x IR thermometer (TKTL 31) 1x temperature probe (TMDT 2-30) 2x AAA Alkaline batteries 1x instructions for use (MP5495) 1x carrying case (size X)
Total product weight
