SKF INFRARED THERMOMETER Emissivity adust + probe

-50 Dec C +1370 Dec C 50:1 Ratio 2.2in Display
Stock Code:
TKTL40_SKF
$1,272.81 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKTL 40
Video Infrared thermometer 50:1, with contact probe TMDT 2-30

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications, this in order to perceive information on abnormalities in operating. SKF Infrared thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

  • 2.2” TFT LCD colour display640 x 480 pixels digital camera Internal memory expandable to 8GB (Micro SD card) Image (JPEG) and video (MP4) Humidity and Air Temperature Dual laser targeting Type-K thermocouple probe Adjustable emissivity High accuracy Fast response time Dewpoint temperature and Wet bulb temperature

Performance

Temperature range using infrared-50  –  1000 °C
Temperature range using probe-50  –  1370 °C
Distance to spot ratio50:1

Properties

Emissivity0.1  –  1.0
Response time300 ms
Spectral response8.0  –  14.0 µm
AlarmsHigh and low level alarm with warning sound
Laser type2 x red targeting laser dots
Laser wavelength632 nm
Laser power class2 mW
Tripod connectorYes, (1/4-20 UNC)
Power adapter110–240 V, 50/60 Hz, EU/US/UK/AUS plugs
HVAC functions
Wet bulb
Dew point
Humidity
Air temperature
Photo640x480 px visual camera (JPG)
Video640x480 px visual camera (3 GP)
Memory310 MB
Recommended applicationsUsed in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
Temperature range using probe-50.0  –  1370.0 °C
ProbeK type probe, TMDT 2-30 included (max. 900 °C)
DisplayColour backlit LCD 2.2", 320x240px
Resolution
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
Measurement modes
Maximum
Minimum
Average
Difference (between min and max)
Probe/IR dual temperature
ConnectionMini USB port, mini USB to USB cable included
Auto switch offAutomatic, user selectable
Battery1 x Rechargeable Li-ion Battery 3.7 V, 1 400 mAh, 5.2 W
Battery life4 h
Instrument dimensions205 x 155 x 62 mm
Housing materialPC/ABS blend, overmoulded with TPU rubber
Colour
Blue
Dark Grey
Instrument weight460 g
Degree of protection (IP)IP 40
Operating temperature range0.0  –  50.0 °C
Recommended storage temperature-10.0  –  60.0 °C
Relative humidity10 to 90%, non-condensing
Case dimensions (l x h x w)530 x 85 x 180 mm

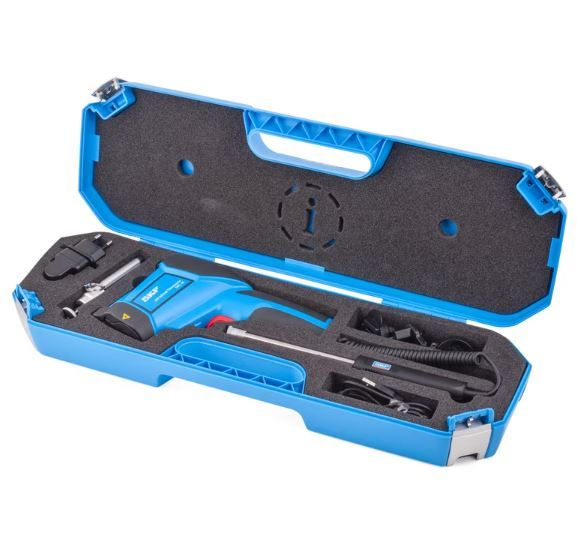

Content
1x IR thermometer (TKTL 40)
1x temperature probe (TMDT 2-30)
1x AC battery charger
1x mini USB to USB connection cable
1x mini tripod
1x instructions for use (MP5427)
1x carrying case (size X)
Total product weight1.82 kg

Logistics

Product net weight1.84 kg
eClass code23-05-19-01
UNSPSC code41112202


Click here for product information

Product Guide Attached
