SKF Hook Spanner HN series Suit: KM17

M72x1.5 M75x1.5 M80x2
Stock Code:
HN17_SKF
$58.99 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

HN 17

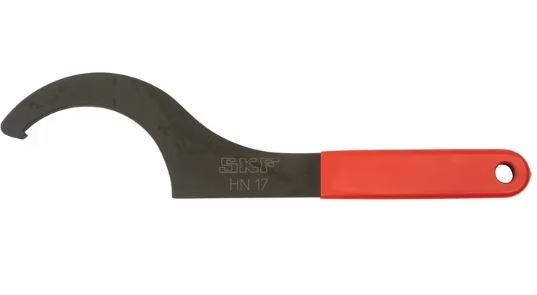

SKF Hook spanner, size 17

The SKF Hook spanner, size 17, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves.They fit on a variety of lock nuts with outer diameter(s) 110 - 115 mm. To be more specific for locknuts: KM 17, KMK 17, KMFE 17, KMT 16, AN 17 and M72x1,5, M75x1,5, M80x2 (DIN 1804).

  • Optimised design allow use in narrow spaces while maintaining maximum force
  • Sturdy plastic handle that is oil, dirt and grease resistant to provide a better grip
  • Drilled hole for easy hanging storage
  • Laser-engraved designation for easy identification
  • They fit on a variety of locknuts with outer diameter(s) 110 - 115mm

Dimensions

Lenght, L334 mm
Outer diameter locknut range, d110-115 mm
Thickness, n10 mm
Working lenght, l280 mm
Outer diameter lock nut range110 to 115 mm
Working length280 mm
Thickness10 mm
Length334 mm
Product weight0.76 kg

Properties

Allows bearing mountingno
CoatingBlack phosphated
ColourBlack, with red handle
Fits on lock nuts inside SKF split pillow block housings (SNL)no
MaterialMedium carbon steel, hardened and tempered
Material handleDurable soft plastic
Part of a kitno
Spanner following DIN 1810 size110-115 mm
Minimum number of lock nut slots1
Allows bearing mountingNo
Fits on lock nuts inside SKF split pillow block housings (SNL)No
Spanner following DIN 1810 size110 to 115 mm
MaterialMedium carbon steel, hardened and tempered
Part of a kitNo
Material handleDurable soft plastic
CoatingBlack phosphated
ColourBlack, with red handle

Click here for product information

Click here for catalogue / range information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
