SKF Tri-Section Pulling Plate TMMS

90-260 mm
Stock Code:
TMMS260_SKF
$2,030.19 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TMMS 260

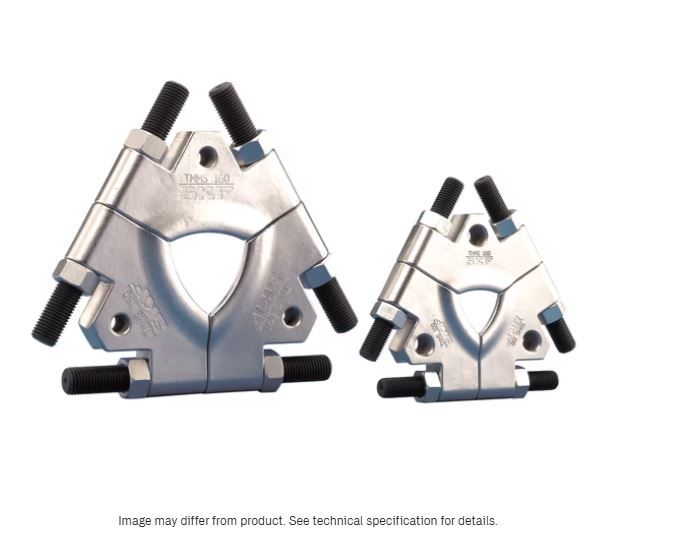

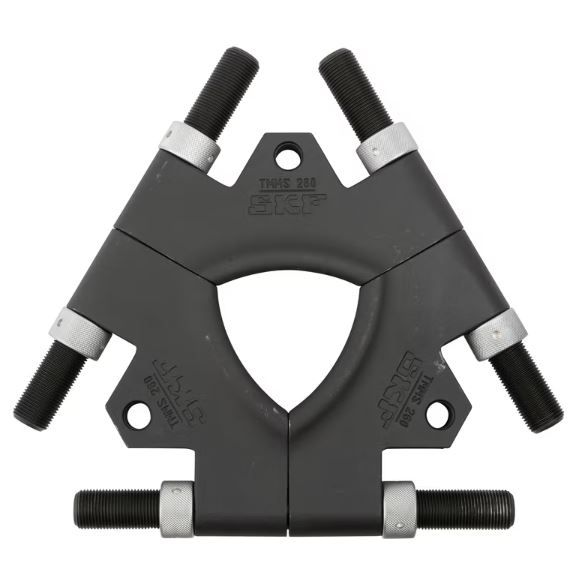

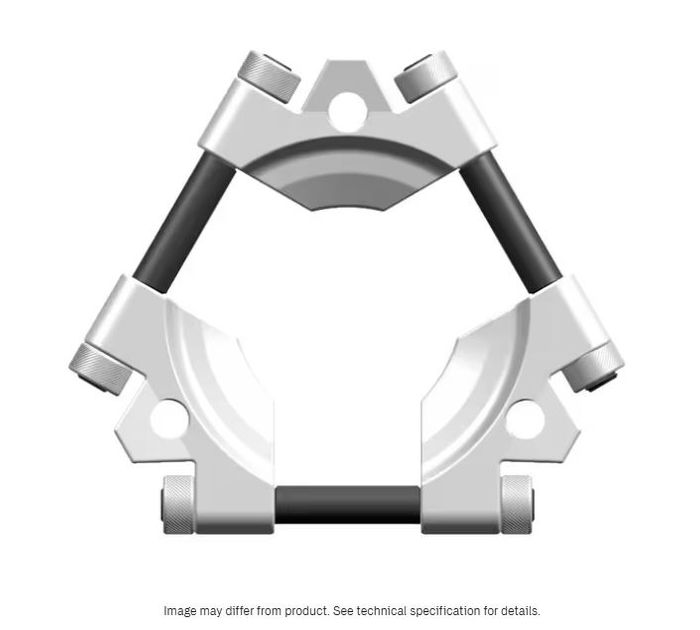

SKF Tri-section pulling plate TMMS 260

The tri-section pulling plate TMMS 260 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimising the risk of bearing damage.

  • Efficient bearing dismounting with unique design to direct dismounting forces directly to the bearing inner ring
  • No bearing damage from dismounting forces that go through the bearing outer ring and rolling elements
  • Even force distribution revents bearing bearing locking or tilting during dismounting
  • Wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft
  • Suitable for use in combination with any three-armed bearing puller

Logistics

Product net weight28.9 kg
eClass code23-05-19-01
UNSPSC code27111712

Properties

Recommended applicationsFor use with a puller in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. To asssist a three armed puller where the claws of the puller can't grip the component properly.
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft)Yes
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)Yes
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)No
Suitable for workpiece dismounting from a HousingNo
Dismounting force generationby pullerarms
Pulling force (max)450 kN
Section plates provided with threaded pullingholeYes
MaterialAlloy engineering steels, hardened and tempered
Coating
Rods: black phosphated
Plates and nuts, Zinc coated
ColourMetallic and black
Product weight28.9 kg

Dimensions

Width of grip external90.0  –  260.0 mm
Connecting threadM22x2.5
Pulling rod distance70.0  –  114.0 mm
Distance threaded pulling holes81 mm
Plate width110 mm
Plate height42 mm
Plate tip width11 mm
Plate tip height5 mm

Click here for product information

Click here for catalogue / range information

Product Guide Attached
